CMS-R010-1.0
ActiveIsabellenhuette USA

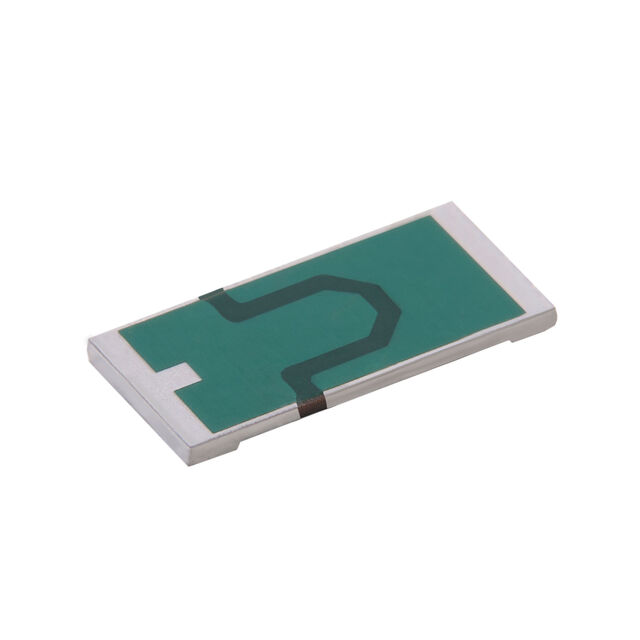

RESISTOR - ISA-PLAN SHUNT, 0.01,
CMS-R010-1.0
ActiveIsabellenhuette USA
RESISTOR - ISA-PLAN SHUNT, 0.01,
Description
General part information
CMS-R010-1.0
10 mOhms ±1% 2.5W Chip Resistor 2512 (6432 Metric) Automotive AEC-Q200, Current Sense, Moisture Resistant, Pulse Withstanding
Technical Specifications
Parameters and characteristics for this part
| Specification | CMS-R010-1.0 |
|---|---|
| Features | Moisture Resistant, Automotive AEC-Q200, Current Sense, Pulse Withstanding |
| Height - Seated (Max) | 0.022 in |
| Number of Terminations | 2 |
| Operating Temperature (Max) | 170 °C |
| Operating Temperature (Min) | -65 °C |
| Package / Case | 2512 (6432 Metric), 2512 (6332 Metric) |
| Package Name | 2512 |
| Power (Watts) | 2.5 W |
| Resistance | 10 mOhms |
| Size / Dimension Length | 0.25 in |
| Size / Dimension Width | 0.12 in |
| Temperature Coefficient | 50 ppm/°C |
| Tolerance | 1 % |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Sign in to see pricing
Create a free account to access distributor pricing data.
CAD
3D models and CAD resources for this part
Documents
Technical documentation and resources
