Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | BPF8089-01SC6 | BPF8089-01SC6 Series |
|---|---|---|
| - | - | |
| Frequency [Max] | 1.61 GHz | 1.61 GHz |
| Frequency [Min] | 1.559 GHz | 1.559 GHz |

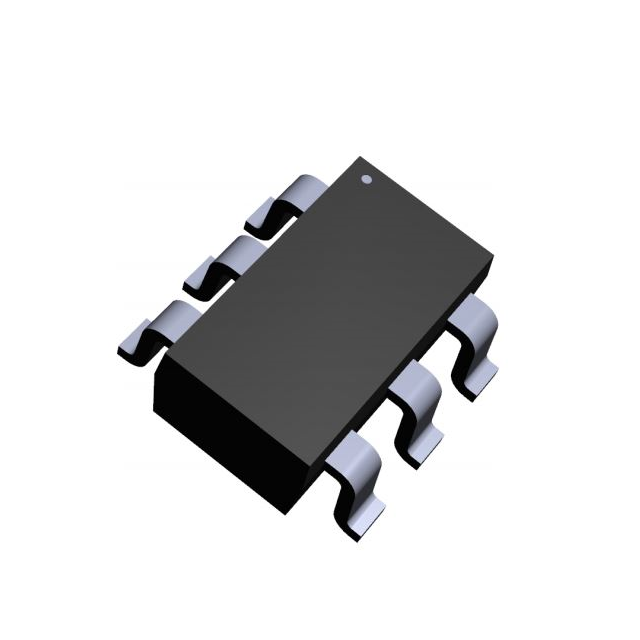

| Package / Case | SOT-23-6 | SOT-23-6 |
| RF Type | GNSS, Galileo, BeiDou, GLONASS, GPS | GNSS, Galileo, BeiDou, GLONASS, GPS |
| Supplier Device Package | SOT-23-6 | SOT-23-6 |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 0.86 | |
| 10 | $ 0.73 | |||
| 25 | $ 0.66 | |||
| 50 | $ 0.62 | |||
| 100 | $ 0.52 | |||
| 250 | $ 0.48 | |||
| 500 | $ 0.45 | |||
| 1000 | $ 0.41 | |||
| Digi-Reel® | 1 | $ 0.86 | ||
| 10 | $ 0.73 | |||
| 25 | $ 0.66 | |||
| 50 | $ 0.62 | |||
| 100 | $ 0.52 | |||
| 250 | $ 0.48 | |||
| 500 | $ 0.45 | |||
| 1000 | $ 0.41 | |||
| Tape & Reel (TR) | 3000 | $ 0.39 | ||
BPF8089-01SC6 Series
STA8089 / STA8090 LNA impedance matching with ESD protection in SOT23
| Part | RF Type | Frequency [Max] | Frequency [Min] | Package / Case | Supplier Device Package |
|---|---|---|---|---|---|
STMicroelectronics BPF8089-01SC6 | BeiDou, Galileo, GLONASS, GNSS, GPS | 1.61 GHz | 1.559 GHz | SOT-23-6 | SOT-23-6 |
STMicroelectronics BPF8089-01SC6 |
Description
General part information
BPF8089-01SC6 Series
To be used in GNSS receiver, the BPF8089-01SC6 is an integrated RF front-end with input impedance matching circuit to be located between STA8089 and STA8090 low noise amplifier input and the antenna. It embeds a matching network associated with an ESD protection to protect STA8089 and STA8090 LNA input according to EOS and ESD standards.
Part of the ASIP product range, this device is packaged in a SOT23-6L and compatible with automatic optical inspection.
