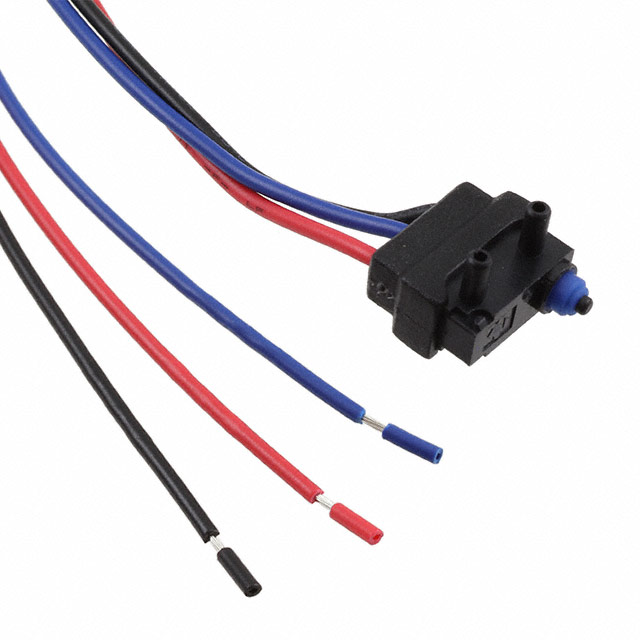

WS0850100F070WA

Active

E-Switch

SWITCH SNAP ACTION SPDT 1A 24V

Search across all available documentation for this part.

Active

E-Switch

SWITCH SNAP ACTION SPDT 1A 24V

Technical Specifications

Parameters and characteristics for this part

SWITCH SNAP ACTION SPDT 1A 24V

Part	Circuit	Voltage Rating - DC	Termination Style	Electrical Life	Actuator Type	Mechanical Life	Ingress Protection	Operating Temperature [Min]	Operating Temperature [Max]	Current Rating (Amps)	Operating Position	Operating Position	Mounting Type	Switch Function	Operating Force
E-Switch WS0850100F070WA	SPDT	24 V	Wire Leads	10000 Cycles	Round (Pin Plunger)	1000000 Cycles	IP67 - Dust Tight, Waterproof	-25 °C	85 °C	1 A	0.413 in	10.5 mm	Chassis Mount	On-Mom	70 gf

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Switch SPDT Chassis Mount
