Description
General part information

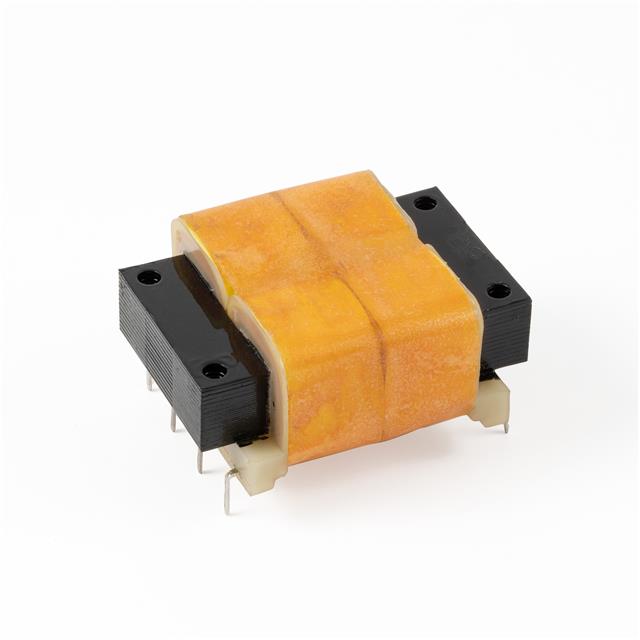

TLP24-250
For SMPS Transformer 2000V Isolation Through Hole
Technical Specifications
Parameters and characteristics for this part
| Specification | TLP24-250 |
|---|---|
| Height - Seated (Max) | 0.875 in |
| Mounting Type | Through Hole |
| Size / Dimension Length | 1.875 in |
| Size / Dimension Width | 1.441 in |
| Voltage - Isolation | 2000 V |
| Voltage - Primary | 230V, 115V |
