Description
General part information

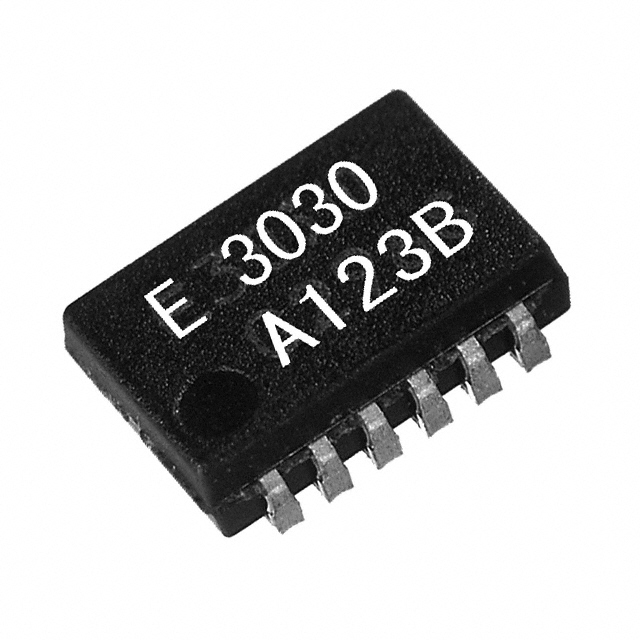

SG-3030LC 32.7680KB6:PURE SN
32.768 kHz XO (Standard) CMOS Oscillator 0.9V ~ 3.6V 12-SOJ, 0.50mm pitch
Technical Specifications
Parameters and characteristics for this part
| Specification | SG-3030LC 32.7680KB6:PURE SN |
|---|---|
| Base Resonator | Crystal |
| Current - Supply (Max) | 3.1 µA |
| Frequency | 0.032768 MHz |
| Height - Seated (Max) | 0.047 in |
| Mounting Type | Surface Mount |
| Operating Temperature (Max) | 70 °C |
| Operating Temperature (Min) | -20 °C |
| Output | CMOS |
| Package / Case | 0.50mm pitch, 12-SOJ |
| Package Name | 12-SOJ |
| Package Pitch | 0.5 mm |
| Size / Dimension Length | 0.142 in |
| Size / Dimension Width | 0.094 in |
| Type | XO (Standard) |
| Voltage - Supply (Maximum) | 3.6 V |
| Voltage - Supply (Minimum) | 0.9 V |
