83604 002100

Active

Belden Inc.

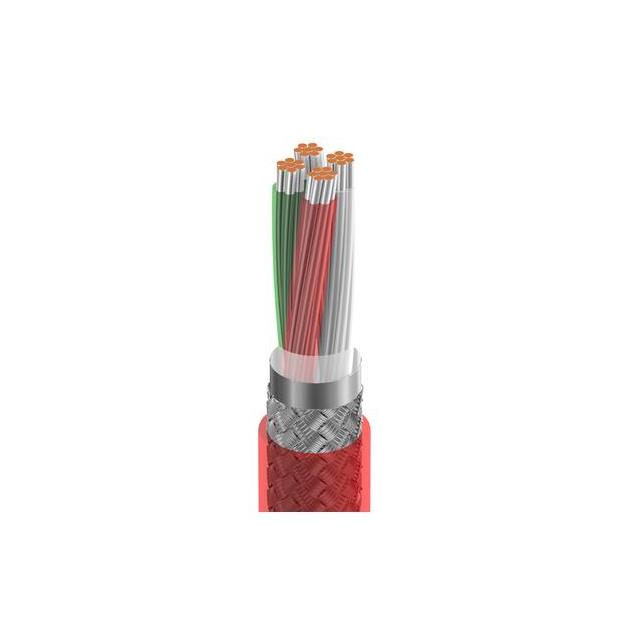

CABLE 4COND 20AWG RED SHLD

Search across all available documentation for this part.

Active

Belden Inc.

CABLE 4COND 20AWG RED SHLD

Technical Specifications

Parameters and characteristics for this part

Specification	83604 002100

Cable Type	Multi-Conductor
Conductor Insulation	Fluorinated Ethylene-Propylene (FEP)
Conductor Material	Copper, Tinned
Conductor Strand [custom]	28
Conductor Strand [custom]	7
Jacket (Insulation) Diameter [diameter]	0.178 in
Jacket (Insulation) Diameter [diameter]	4.52 mm
Jacket (Insulation) Material	Fluorinated Ethylene-Propylene (FEP), Plenum
Jacket (Insulation) Thickness	0.356 mm
Jacket (Insulation) Thickness	0.014 in
Jacket Color	Red
Length [x]	30.5 m
Length [x]	100 ft
Number of Conductors	4
Operating Temperature [Max]	200 °C
Operating Temperature [Min]	-70 °C
Ratings	UL Style CMP
Shield Coverage	100 %, 85 %
Shield Material	Copper, Tinned, Aluminum
Shield Type	Foil, Braid
Usage	Audio, Instrumentation, Control
Voltage	300 V
Wire Gauge	20 AWG

Part	Ratings	Jacket (Insulation) Material	Number of Conductors	Length [x]	Length [x]	Jacket (Insulation) Diameter [diameter]	Jacket (Insulation) Diameter [diameter]	Shield Material	Jacket (Insulation) Thickness	Jacket (Insulation) Thickness	Wire Gauge	Usage	Conductor Insulation	Conductor Material	Operating Temperature [Max]	Operating Temperature [Min]	Cable Type	Shield Type	Voltage	Jacket Color	Conductor Strand [custom]	Conductor Strand [custom]	Shield Coverage
Belden Inc. 83604 002100	UL Style CMP	Fluorinated Ethylene-Propylene (FEP) Plenum	4	30.5 m	100 ft	0.178 in	4.52 mm	Aluminum Copper Tinned	0.356 mm	0.014 in	20 AWG	Audio Control Instrumentation	Fluorinated Ethylene-Propylene (FEP)	Copper Tinned	200 °C	-70 °C	Multi-Conductor	Braid Foil	300 V	Red	28	7	85 % 100 %

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Spool	100	$ 12.71

General part information

4 Conductor Multi-Conductor Cable Red 20 AWG Foil, Braid 100.0' (30.5m)
