928960-7

Active

TE Connectivity AMP Connectors

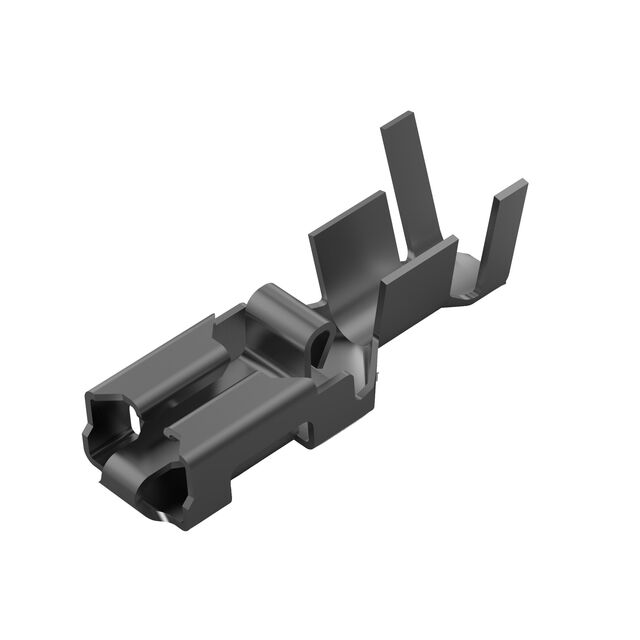

CONN QC RCPT 9-11AWG 0.250 CRIMP

Search across all available documentation for this part.

Active

TE Connectivity AMP Connectors

CONN QC RCPT 9-11AWG 0.250 CRIMP

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	928960-7	928960 Series

Contact Finish	Tin	Silver, Tin
Contact Material	Phosphor Bronze	Brass, Phosphor Bronze
Gender	Female	Female
Insulation	Non-Insulated	Non-Insulated
Insulation Diameter [Max] [diameter]	5.28 mm, 0.208 in	0.208 - 5.28 mm
Insulation Diameter [Min] [diameter]	0.157 in, 3.99 mm	0.157 - 3.99 in
Length - Overall [x]	0.878 in	0.878 in
Length - Overall [x]	22.3 mm	22.3 mm
Mounting Type	Free Hanging (In-Line)	Free Hanging (In-Line)
Tab Thickness	0.032 in	0.032 in
Tab Thickness	0.81 mm	0.81 mm
Tab Width	6.35 mm	6.35 mm
Tab Width	0.25 in	0.25 in
Terminal Type	Standard	Standard
Termination	Crimp	Crimp
Wire Gauge [Max]	11 AWG	11 AWG
Wire Gauge [Min]	9 AWG	9 AWG

POS-LOCK STECKH 6,3

Part	Insulation	Insulation Diameter [Min] [diameter]	Insulation Diameter [Max] [diameter]	Termination	Contact Material	Tab Width	Tab Width	Length - Overall [x]	Length - Overall [x]	Contact Finish	Tab Thickness	Tab Thickness	Mounting Type	Wire Gauge [Max]	Wire Gauge [Min]	Terminal Type	Gender
TE Connectivity AMP Connectors 928960-8	Non-Insulated	0.157 in, 3.99 mm	0.208 in, 5.28 mm	Crimp	Brass	6.35 mm	0.25 in	0.878 in	22.3 mm	Silver	0.032 in	0.81 mm	Free Hanging (In-Line)	11 AWG	9 AWG	Standard	Female
TE Connectivity AMP Connectors 928960-7	Non-Insulated	0.157 in, 3.99 mm	0.208 in, 5.28 mm	Crimp	Phosphor Bronze	6.35 mm	0.25 in	0.878 in	22.3 mm	Tin	0.032 in	0.81 mm	Free Hanging (In-Line)	11 AWG	9 AWG	Standard	Female

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

0.250" (6.35mm) Quick Connect Female 9-11 AWG Crimp Connector Non-Insulated
