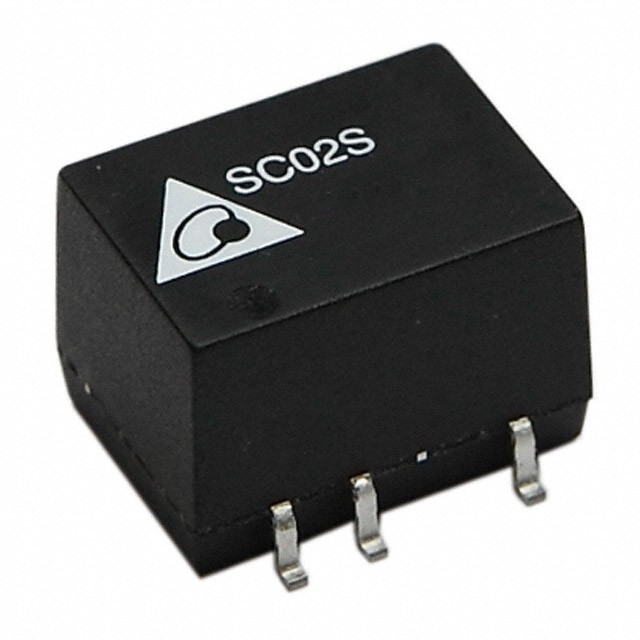

SC02S2412A
ObsoleteDelta Electronics
DC DC CONVERTER 12V 2W
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
SC02S2412A
ObsoleteDelta Electronics
DC DC CONVERTER 12V 2W
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | SC02S2412A |
|---|---|
| Applications | Medical |
| Current - Output (Max) | 165 mA |
| Efficiency | 81 % |
| Features | SCP |
| Mounting Type | Surface Mount |
| Number of Outputs | 1 |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -40 °C |
| Package / Case | 8-SMD Module, 5 Leads |
| Power (Watts) | 2 W |
| Size / Dimension [x] | 0.5 in |
| Size / Dimension [x] | 12.8 mm |
| Size / Dimension [y] | 9.3 mm |
| Size / Dimension [y] | 0.37 " |
| Size / Dimension [z] | 0.35 " |
| Size / Dimension [z] | 9 mm |
| Type | Isolated Module |
| Voltage - Input (Max) [Max] | 26.4 V |
| Voltage - Input (Min) [Min] | 21.6 V |
| Voltage - Isolation | 1000 V |
| Voltage - Output 1 | 12 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
Description
General part information
SC02S2412A
Isolated Module DC DC Converter 1 Output 12V 165mA 21.6V - 26.4V Input
