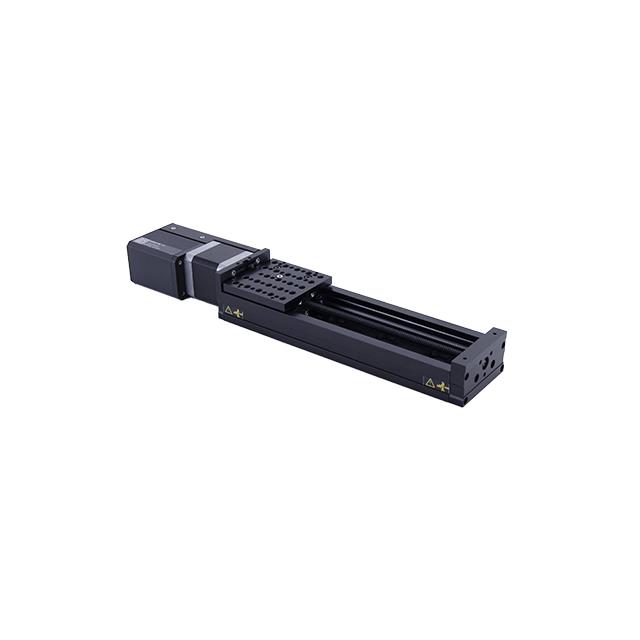

X-LSQ075D-E01-KX13C
ActiveZaber Technologies
LINEAR STAGE 75MM CPITCH HSPEED
X-LSQ075D-E01-KX13C
ActiveZaber Technologies
LINEAR STAGE 75MM CPITCH HSPEED
Description
General part information
X-LSQ075D-E01-KX13C
LINEAR STAGE 75MM CPITCH HSPEED
Technical Specifications
Parameters and characteristics for this part
| Specification | X-LSQ075D-E01-KX13C |
|---|---|
| Approval Agency | CE |
| Construction | Ball Screw |
| Features | Integrated Controller |
| Feedback Type | Incremental Encoder |
| Motor Type | Bipolar, Stepper |
| Operating Temperature (Max) | 50 °C |
| Operating Temperature (Min) | 0 °C |
| Termination Style | Connector |
| Type | Linear Axis |
| Voltage - Rated (Max) | 48 V |
| Voltage - Rated (Min) | 24 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Sign in to see pricing
Create a free account to access distributor pricing data.
CAD
3D models and CAD resources for this part
Documents
Technical documentation and resources
