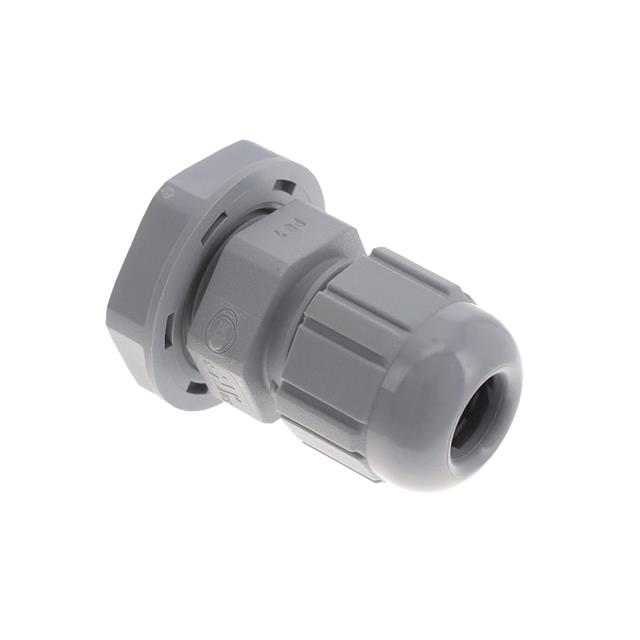

S1213

Active

LAPP

CABLE GLAND 4-9MM PG13 POLYAMIDE

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

S1213

Active

LAPP

CABLE GLAND 4-9MM PG13 POLYAMIDE

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 3.31
		10	$ 3.00
		100	$ 2.65
		1000	$ 1.92
		5000	$ 1.72

Description

General part information

- Series

Cable Gland Polyamide (PA), Nylon PG13 Gray

Documents

Technical documentation and resources

Datasheet

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	S1213	- Series

Color	Gray	Gray, Black
Includes	-	O-Ring, Locknut
Ingress Protection	-	NEMA 1, IP69, IP68, NEMA 12
Material	Polyamide (PA), Nylon	Polyamide (PA), Nylon
Operating Temperature [Max]	100 °C	100 °C
Operating Temperature [Min]	-40 °C	-40 °C
Outside Cable Diameter (Max)	-	0.197 - 1.772 "
Outside Cable Diameter (Max)	-	14 - 44 mm
Outside Cable Diameter (Max)	-	0.551 - 1.732 in
Outside Cable Diameter (Max)	-	25 - 31 mm
Outside Cable Diameter (Max) [Max] [diameter]	9 mm	9 - 34 mm
Outside Cable Diameter (Max) [Max] [diameter]	0.354 in	0.354 - 45 mm
Outside Cable Diameter (Min)	-	1.5 - 39 mm
Outside Cable Diameter (Min)	-	0.059 - 1.535 in
Outside Cable Diameter (Min)	-	13 mm
Outside Cable Diameter (Min) [Min]	0.157 in	0.138 - 1.102 in
Outside Cable Diameter (Min) [Min]	4 mm	3.5 - 28 mm
Thread Length	0.354 in	0.315 - 0.591 in
Thread Length	8.99 mm	8 - 15 mm
Thread Size	PG13	3/4 NPT, PG9, M50x1.5, PG7, 1/2" NPT, M40x1.5, PG13, M25x1.5, 3/8" NPT, M16x1.5, PG11, PG48, M20x1.5, PG16, M32x1.5, PG42, PG36, M12x1.5, PG29, PG21, 1" NPT
Type	Cable Gland	Cable Gland

- Series

CABLE GLAND 9-16MM 3/4" NPT

...

Part	Thread Size	Outside Cable Diameter (Min) [Min] [diameter]	Outside Cable Diameter (Min) [Min] [diameter]	Type	Thread Length	Thread Length	Color	Operating Temperature [Max]	Operating Temperature [Min]	Material	Outside Cable Diameter (Max) [Max] [diameter]	Outside Cable Diameter (Max) [Max] [diameter]	Outside Cable Diameter (Min) [Min]	Outside Cable Diameter (Min) [Min]	Ingress Protection	Includes	Outside Cable Diameter (Max) [Max] [diameter]
LAPP S1234	3/4 NPT	9 mm	0.354 in	Cable Gland	0.591 in	15 mm	Gray	100 °C	-40 °C	Polyamide (PA), Nylon	0.63 "	16 mm
LAPP S1109	PG9			Cable Gland	0.315 in	8 mm	Gray	100 °C	-40 °C	Polyamide (PA), Nylon	0.315 in	8 mm	3.5 mm	0.138 in
LAPP S1636	M50x1.5	24 mm	0.945 in	Cable Gland	0.472 in	12 mm	Gray	100 °C	-40 °C	Polyamide (PA), Nylon	1.142 in	29 mm			IP68, IP69, NEMA 1, NEMA 12
LAPP S2207	PG7	1.5 mm	0.059 in	Cable Gland	0.315 in	8 mm	Black	100 °C	-40 °C	Polyamide (PA), Nylon	0.197 in	5 mm
LAPP S2542		34 mm	1.339 in	Cable Gland	0.472 in	12 mm	Black	100 °C	-40 °C	Polyamide (PA), Nylon	1.772 in	45 mm			IP68, IP69, NEMA 1, NEMA 12	Locknut, O-Ring
LAPP S1212	1/2" NPT			Cable Gland	0.591 in	15 mm	Gray	100 °C	-40 °C	Polyamide (PA), Nylon		0.354 in	4 mm	0.157 in			9 mm
LAPP S1209	PG9	2 mm	0.079 in	Cable Gland	0.315 in	8 mm	Gray	100 °C	-40 °C	Polyamide (PA), Nylon	0.236 in	6 mm
LAPP S2529	M40x1.5			Cable Gland	0.394 in	10 mm	Black	100 °C	-40 °C	Polyamide (PA), Nylon	1.102 in		16 mm	0.63 in	IP68, IP69, NEMA 1, NEMA 12	Locknut, O-Ring	28 mm
LAPP S1213	PG13			Cable Gland	0.354 in	8.99 mm	Gray	100 °C	-40 °C	Polyamide (PA), Nylon		0.354 in	4 mm	0.157 in			9 mm
LAPP S2209	PG9	2 mm	0.079 in	Cable Gland	0.315 in	8 mm	Black	100 °C	-40 °C	Polyamide (PA), Nylon	0.236 in	6 mm
