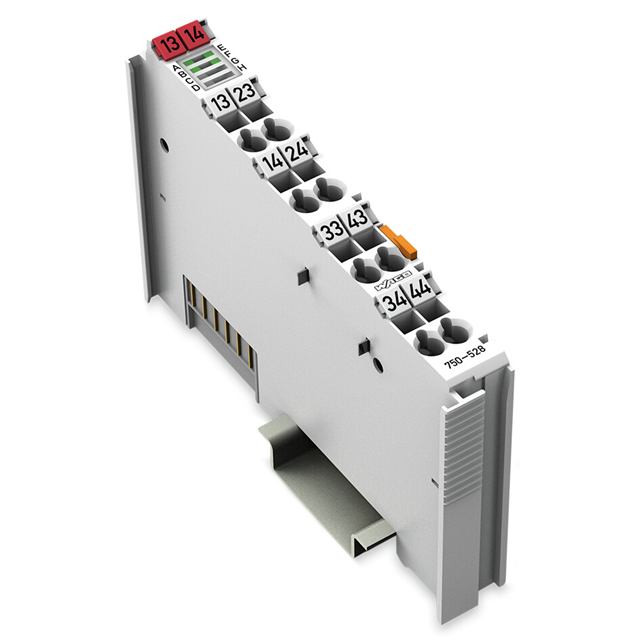

750-528
ActiveWAGO Corporation
I/O MODULE 4 DIGITAL 0-30V
750-528
ActiveWAGO Corporation
I/O MODULE 4 DIGITAL 0-30V
Description
General part information
750-528
Output Module DIN Rail 30VAC/DC
Technical Specifications
Parameters and characteristics for this part
| Specification | 750-528 |
|---|---|
| Approval Agency | EAC, UL |
| For Use With/Related Products | 750 Series |
| Ingress Protection | IP20 |
| Mounting Type | DIN Rail |
| Number of Outputs | 4 |
| Operating Temperature (Max) | 55 °C |
| Operating Temperature (Min) | 0 °C |
| Output Type | Digital |
| Termination Style | Spring Terminal |
| Type | Output Module |
| Voltage - Supply | 30 VDC |
| Voltage - Supply (Option 1) | 30 VAC |
| Voltage - Supply (Option 2) | 30 VDC |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Sign in to see pricing
Create a free account to access distributor pricing data.
CAD
3D models and CAD resources for this part
Documents
Technical documentation and resources
