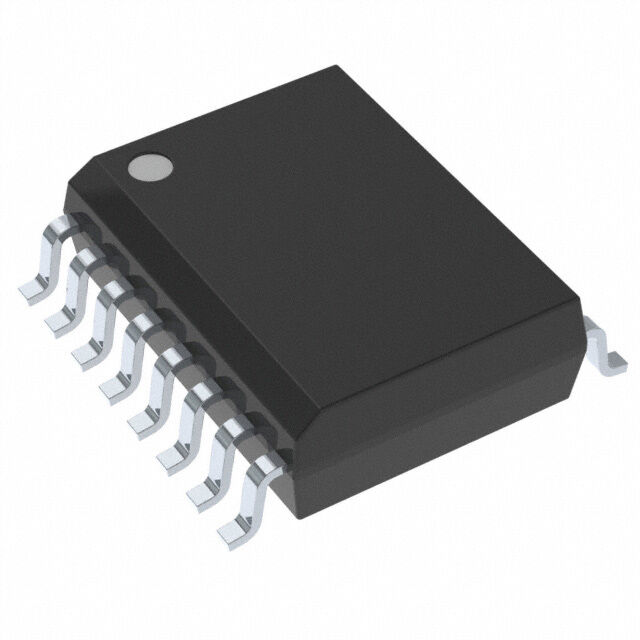

CY14V101QS-SF108XQ

Active

Infineon Technologies

NV SRAM, 128K X 8BIT, SOIC-16

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet Technical Data Sheet EN

CY14V101QS-SF108XQ

Active

Infineon Technologies

NV SRAM, 128K X 8BIT, SOIC-16

Deep-Dive with AI

DocumentsDatasheet Technical Data Sheet EN

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	CY14V101QS-SF108XQ

Clock Frequency	108 MHz
Memory Format	NVSRAM
Memory Interface	SPI
Memory Organization	128K x 8
Memory Size	1 Mbit
Memory Type	Non-Volatile
Mounting Type	Surface Mount
Operating Temperature [Max]	105 °C
Operating Temperature [Min]	-40 °C
Package / Case	16-SOIC
Package / Case [x]	0.295 in
Package / Case [y]	7.5 mm
Supplier Device Package	16-SOIC
Technology	NVSRAM (Non-Volatile SRAM)
Voltage - Supply [Max]	3.6 V
Voltage - Supply [Min]	2.7 V

CY14V101 Series

Part	Package / Case [x]	Package / Case	Package / Case [y]	Voltage - Supply [Min]	Voltage - Supply [Max]	Operating Temperature [Max]	Operating Temperature [Min]	Memory Interface	Memory Format	Memory Type	Technology	Memory Organization	Clock Frequency	Memory Size	Mounting Type	Supplier Device Package	Write Cycle Time - Word, Page [custom]	Write Cycle Time - Word, Page [custom]	Access Time	Write Cycle Time - Word, Page
Infineon Technologies CY14V101Q3-SFXIT	0.295 in	16-SOIC	7.5 mm	2.7 V	3.6 V	85 °C	-40 °C	SPI	NVSRAM	Non-Volatile	NVSRAM (Non-Volatile SRAM)	128K x 8	30 MHz	1 Mbit	Surface Mount	16-SOIC
Infineon Technologies CY14V101LA-BA45XI		48-TFBGA		2.7 V	3.6 V	85 °C	-40 °C	Parallel	NVSRAM	Non-Volatile	NVSRAM (Non-Volatile SRAM)	128K x 8		1 Mbit	Surface Mount	48-FBGA (6x10)	45 ns	45 ns	45 ns
Infineon Technologies CY14V101QS-SE108XIT	0.295 in	16-SOIC	7.5 mm	2.7 V	3.6 V	85 °C	-40 °C	SPI	NVSRAM	Non-Volatile	NVSRAM (Non-Volatile SRAM)	128K x 8	108 MHz	1 Mbit	Surface Mount	16-SOIC
Infineon Technologies CY14V101QS-BK108XI		24-TBGA		2.7 V	3.6 V	85 °C	-40 °C	SPI	NVSRAM	Non-Volatile	NVSRAM (Non-Volatile SRAM)	128K x 8	108 MHz	1 Mbit	Surface Mount	24-FBGA (6x8)
Infineon Technologies CY14V101QS-SF108XQ	0.295 in	16-SOIC	7.5 mm	2.7 V	3.6 V	105 °C	-40 °C	SPI	NVSRAM	Non-Volatile	NVSRAM (Non-Volatile SRAM)	128K x 8	108 MHz	1 Mbit	Surface Mount	16-SOIC
Infineon Technologies CY14V101LA-BA25XIT		48-TFBGA		2.7 V	3.6 V	85 °C	-40 °C	Parallel	NVSRAM	Non-Volatile	NVSRAM (Non-Volatile SRAM)	128K x 8		1 Mbit	Surface Mount	48-FBGA (6x10)			25 ns	25 ns
Infineon Technologies CY14V101LA-BA45XI		48-TFBGA		2.7 V	3.6 V	85 °C	-40 °C	Parallel	NVSRAM	Non-Volatile	NVSRAM (Non-Volatile SRAM)	128K x 8		1 Mbit	Surface Mount	48-FBGA (6x10)	45 ns	45 ns	45 ns
Infineon Technologies CY14V101PS-SF108XIT	0.295 in	16-SOIC	7.5 mm	2.7 V	3.6 V	85 °C	-40 °C	SPI	NVSRAM	Non-Volatile	NVSRAM (Non-Volatile SRAM)	128K x 8	108 MHz	1 Mbit	Surface Mount	16-SOIC

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tube	1	$ 19.27
		10	$ 17.11
		25	$ 16.31
		50	$ 15.74
		100	$ 15.18
		460	$ 14.02
Newark	Each	1	$ 15.37
		5	$ 14.81
		10	$ 14.27
		25	$ 13.78

Description

General part information

CY14V101 Series

NVSRAM (Non-Volatile SRAM) Memory IC 1Mbit SPI 108 MHz 16-SOIC

Documents

Technical documentation and resources

Datasheet

Technical Data Sheet EN

Datasheet
