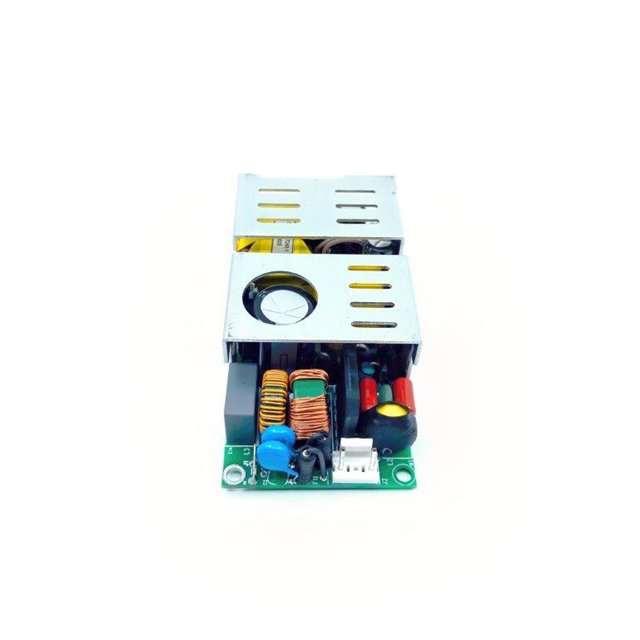

SLB125S24K
ActiveSL POWER / Advanced Energy
AC/DC CONVERTER 24V 86W
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
SLB125S24K
ActiveSL POWER / Advanced Energy
AC/DC CONVERTER 24V 86W
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | SLB125S24K |
|---|---|
| Applications | ITE (Commercial), Medical |
| Approval Agency | UL, TUV, cURus, CE, CSA |
| Current - Output 1 | 3.6 A |
| Efficiency | 89 % |
| Features | Universal Input |
| Minimum Load Required | False |
| Mounting Type | Chassis Mount |
| Number of Outputs | 1 |
| Operating Temperature [Max] | 70 °C |
| Operating Temperature [Min] | -20 °C |
| Power (Watts) | 86 W, 125 W |
| Size / Dimension [x] | 4 in |
| Size / Dimension [x] | 101.6 mm |
| Size / Dimension [y] | 2 in |
| Size / Dimension [y] | 50.8 mm |
| Size / Dimension [z] | 32.1 mm |
| Size / Dimension [z] | 1.26 in |
| Standard Number | 60601-1, 62368-1 |
| Type | Open Frame |
| Voltage - Input [Max] | 264 VAC |
| Voltage - Input [Min] | 80 VAC |
| Voltage - Isolation | 4000 V |
| Voltage - Output 1 | 24 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 1 | $ 33.69 | |
Description
General part information
SLB125S24K
Open Frame AC DC Converters 1 Output 24V 80 ~ 264 VAC Input
