1106461-2
ActiveTE Connectivity AMP Connectors

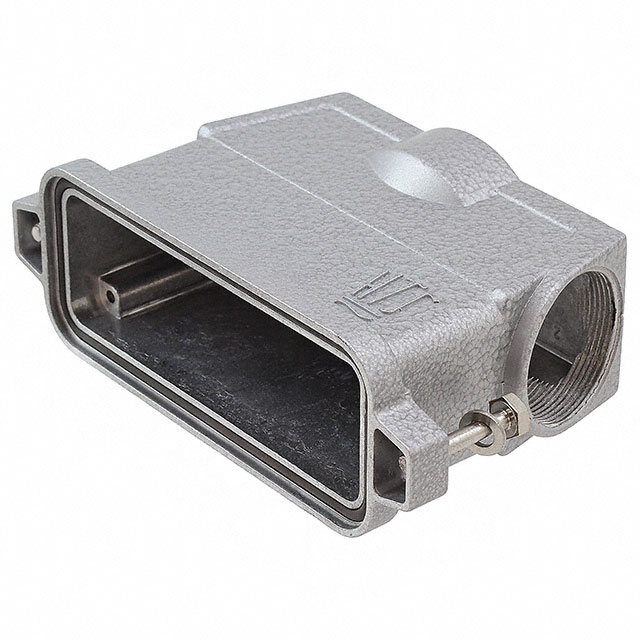

CONN HOOD SIDE ENTRY SZ8 M40
Deep-Dive with AI
Search across all available documentation for this part.
1106461-2
ActiveTE Connectivity AMP Connectors
CONN HOOD SIDE ENTRY SZ8 M40
Deep-Dive with AI
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | 1106461-2 | 1106461 Series |
|---|---|---|
| Connector Type | Hood | Hood |
| Housing Color | Gray | Black, Gray |
| Housing Finish | Powder Coated | EMC Coating, Powder Coated, Chromite TCP Passivation |
| Housing Material | Aluminum Alloy, Die Cast | Aluminum Alloy, Die Cast |
| Ingress Protection | IP68 - Dust Tight, Waterproof | IP68 - Dust Tight, Waterproof |
| Lock Location | Screw Locks on Hood | Screw Locks on Hood |
| Operating Temperature [Max] | 80 C | 80 C |
| Operating Temperature [Min] | -40 °C | -40 °C |
| Size | 8 | 8 |
| Size / Dimension [x] | 156 mm | 156 mm |
| Size / Dimension [x] | 6.142 in | 6.142 in |
| Size / Dimension [y] | 53 mm | 53 mm |
| Size / Dimension [y] | 2.087 in | 2.087 in |
| Size / Dimension [z] | 90 mm | 90 mm |
| Size / Dimension [z] | 3.543 in | 3.543 in |
| Style | Side Entry | Top Entry, Side Entry |
| Thread Size | - | M32 |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 40 | $ 179.29 | |
1106461 Series
CONN HOOD TOP ENTRY SZ8 M40
| Part | Style | Housing Color | Size | Housing Finish | Size / Dimension [x] | Size / Dimension [x] | Size / Dimension [z] | Size / Dimension [z] | Size / Dimension [y] | Size / Dimension [y] | Connector Type | Housing Material | Ingress Protection | Lock Location | Operating Temperature [Min] | Operating Temperature [Max] | Thread Size |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
TE Connectivity AMP Connectors 1106461-4 | Top Entry | Black | 8 | EMC Coating | 156 mm | 6.142 in | 90 mm | 3.543 in | 53 mm | 2.087 in | Hood | Aluminum Alloy, Die Cast | IP68 - Dust Tight, Waterproof | Screw Locks on Hood | |||
TE Connectivity AMP Connectors 1106461-2 | Side Entry | Gray | 8 | Powder Coated | 156 mm | 6.142 in | 90 mm | 3.543 in | 53 mm | 2.087 in | Hood | Aluminum Alloy, Die Cast | IP68 - Dust Tight, Waterproof | Screw Locks on Hood | -40 °C | 80 C | |
TE Connectivity AMP Connectors 1106461-9 | Side Entry | Black | 8 | Chromite TCP Passivation | 156 mm | 6.142 in | 90 mm | 3.543 in | 53 mm | 2.087 in | Hood | Aluminum Alloy, Die Cast | IP68 - Dust Tight, Waterproof | Screw Locks on Hood | -40 °C | 80 C | M32 |
TE Connectivity AMP Connectors 1106461-8 | Side Entry | Black | 8 | Chromite TCP Passivation | 156 mm | 6.142 in | 90 mm | 3.543 in | 53 mm | 2.087 in | Hood | Aluminum Alloy, Die Cast | IP68 - Dust Tight, Waterproof | Screw Locks on Hood | -40 °C | 80 C | M32 |
TE Connectivity AMP Connectors 1106461-1 | Top Entry | Gray | 8 | Powder Coated | 156 mm | 6.142 in | 90 mm | 3.543 in | 53 mm | 2.087 in | Hood | Aluminum Alloy, Die Cast | IP68 - Dust Tight, Waterproof | Screw Locks on Hood | -40 °C | 80 C |
Description
General part information
1106461 Series
Hood Connector Side Entry M40 8 IP68 - Dust Tight, Waterproof
