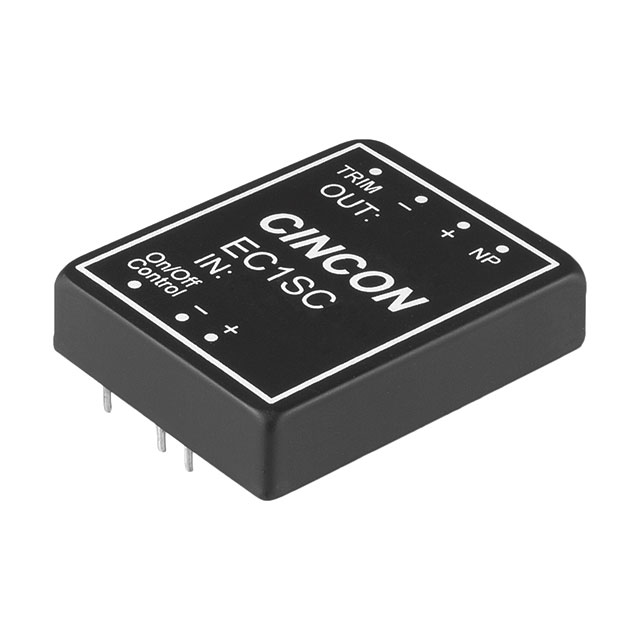

EC1SC11
ActiveCincon Electronics Co. LTD
DC DC CONVERTER 5V 20W
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
EC1SC11
ActiveCincon Electronics Co. LTD
DC DC CONVERTER 5V 20W
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | EC1SC11 |
|---|---|
| Applications | ITE (Commercial) |
| Control Features | Active High, Enable |
| Current - Output (Max) [Max] | 4 A |
| Features | Remote On/Off, OCP, SCP |
| Mounting Type | Through Hole |
| Number of Outputs | 1 |
| Operating Temperature [Max] | 100 °C |
| Operating Temperature [Min] | -25 °C |
| Package / Case | 8-DIP Module, 7 Leads |
| Power (Watts) | 20 W |
| Size / Dimension [x] | 2 in |
| Size / Dimension [x] | 50.8 mm |
| Size / Dimension [y] | 40.6 mm |
| Size / Dimension [y] | 1.6 " |
| Size / Dimension [z] | 0.45 " |
| Size / Dimension [z] | 11.4 mm |
| Standard Number | 60950-1 |
| Type | Isolated Module |
| Voltage - Input (Max) [Max] | 72 V |
| Voltage - Input (Min) [Min] | 18 V |
| Voltage - Isolation | 1.5 kV |
| Voltage - Output 1 | 5 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tube | 1 | $ 45.75 | |
| 5 | $ 44.05 | |||
| 10 | $ 43.34 | |||
| 25 | $ 42.41 | |||
| 50 | $ 41.72 | |||
| 100 | $ 41.04 | |||
| 250 | $ 34.69 | |||
Description
General part information
EC1SC11
Isolated Module DC DC Converter 1 Output 5V 4A 18V - 72V Input
