EHHD15FFB
ActiveSwitchcraft Inc.

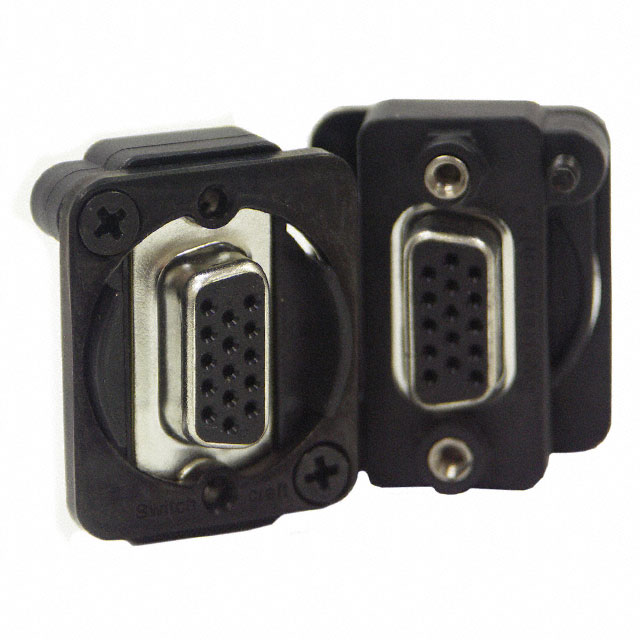

DSUB GENDER CHANGER HD15F HD15F
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
EHHD15FFB
ActiveSwitchcraft Inc.
DSUB GENDER CHANGER HD15F HD15F
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | EHHD15FFB | EHHD15 Series |
|---|---|---|
| Connector Style | Gender Changer | Gender Changer, Connector Saver |
| Contact Finish | Gold | Gold |
| Convert From (Adapter End) | Female, D-Sub, 15 HD | Female, D-Sub, 15 HD, Male |
| Convert To (Adapter End) | Female, 15 HD, D-Sub | Female, 15 HD, D-Sub, Male |
| Housing Color | Yellow | Yellow |
| Includes | 2 Screws, 1 Connector, 1 Flange, 1 Housing | 2 Screws, 1 Connector, 1 Flange, 1 Housing |
| Mounting Type | Panel Mount, Square Flange | Panel Mount, Square Flange |
| Number of Rows | 3 | 3 |
| Shell Material, Finish | Nickel Silver, Black Chrome Plated | Nickel Silver, Black Chrome Plated, Tin Plated |
EHHD15 Series
DSUB GENDER CHANGER HD15F HD15F
| Part | Convert To (Adapter End) | Connector Style | Contact Finish | Mounting Type | Housing Color | Convert From (Adapter End) | Shell Material, Finish | Includes | Number of Rows |
|---|---|---|---|---|---|---|---|---|---|
Switchcraft Inc. EHHD15FFB | 15 HD, D-Sub, Female | Gender Changer | Gold | Panel Mount, Square Flange | Yellow | 15 HD, D-Sub, Female | Black Chrome Plated, Nickel Silver | 1 Connector, 1 Flange, 1 Housing, 2 Screws | 3 |
Switchcraft Inc. EHHD15MFB | 15 HD, D-Sub, Female | Connector Saver | Gold | Panel Mount, Square Flange | Yellow | 15 HD, D-Sub, Male | Black Chrome Plated, Nickel Silver | 1 Connector, 1 Flange, 1 Housing, 2 Screws | 3 |
Switchcraft Inc. EHHD15MM | 15 HD, D-Sub, Male | Gender Changer | Gold | Panel Mount, Square Flange | Yellow | 15 HD, D-Sub, Male | Nickel Silver, Tin Plated | 1 Connector, 1 Flange, 1 Housing, 2 Screws | 3 |
Switchcraft Inc. EHHD15MMB | 15 HD, D-Sub, Male | Gender Changer | Gold | Panel Mount, Square Flange | Yellow | 15 HD, D-Sub, Male | Black Chrome Plated, Nickel Silver | 1 Connector, 1 Flange, 1 Housing, 2 Screws | 3 |
Switchcraft Inc. EHHD15MF | 15 HD, D-Sub, Female | Connector Saver | Gold | Panel Mount, Square Flange | Yellow | 15 HD, D-Sub, Male | Nickel Silver, Tin Plated | 1 Connector, 1 Flange, 1 Housing, 2 Screws | 3 |
Switchcraft Inc. EHHD15FF | 15 HD, D-Sub, Female | Gender Changer | Gold | Panel Mount, Square Flange | Yellow | 15 HD, D-Sub, Female | Nickel Silver, Tin Plated | 1 Connector, 1 Flange, 1 Housing, 2 Screws | 3 |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 15.15 | |
| 10 | $ 13.27 | |||
| 25 | $ 12.69 | |||
| 50 | $ 12.64 | |||
Description
General part information
EHHD15 Series
Adapter Connector D-Sub, 15 HD, Female To D-Sub, 15 HD, Female Panel Mount, Square Flange
