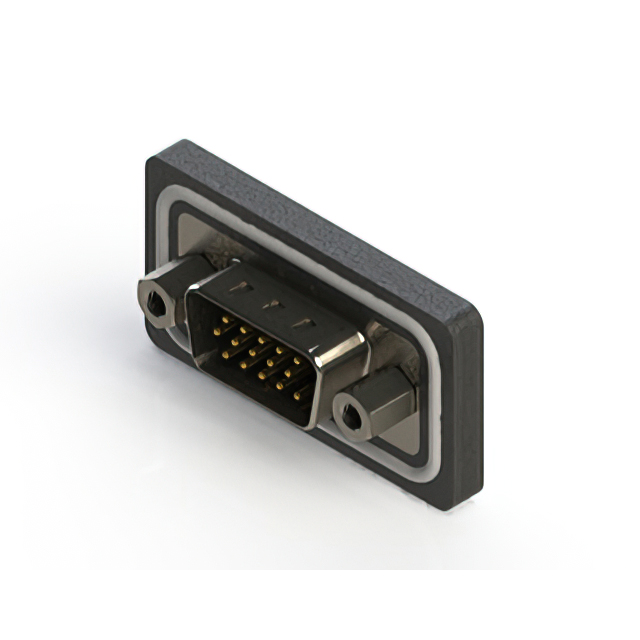

637-W15-621-012

Active

EDAC Inc.

637W (WATERPROOF) SERIES VERTICA

Search across all available documentation for this part.

Active

EDAC Inc.

637W (WATERPROOF) SERIES VERTICA

Technical Specifications

Parameters and characteristics for this part

Specification	637-W15-621-012

Color	Black
Connector Style	High Density, D-Sub
Connector Type	Plug, Male Pins
Contact Finish	Gold
Contact Finish Thickness	0.76 Ám
Contact Finish Thickness	30 Áin
Contact Material	Copper Alloy
Contact Type	Signal
Current Rating (Amps)	3 A
Dielectric Material	Polybutylene Terephthalate (PBT)
Features	Grounding Indents, Shielded
Flange Feature	Female Screwlock (4-40), Mating Side
Ingress Protection	IP67 - Dust Tight, Waterproof
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole
Number of Positions	15
Number of Rows	3
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-25 °C
Shell Material, Finish	Nickel Plated, Steel
Shell Size, Connector Layout [custom]	DE, E
Shell Size, Connector Layout [custom]	1
Shell Size, Connector Layout [custom]	High Density
Termination	Solder

Part	Contact Finish Thickness	Contact Finish Thickness	Number of Rows	Material Flammability Rating	Shell Size, Connector Layout [custom]	Shell Size, Connector Layout [custom]	Shell Size, Connector Layout [custom]	Features	Dielectric Material	Flange Feature	Contact Finish	Ingress Protection	Number of Positions	Current Rating (Amps)	Termination	Operating Temperature [Min]	Operating Temperature [Max]	Color	Shell Material, Finish	Contact Material	Mounting Type	Connector Style	Connector Type	Contact Type	Contact Finish Thickness
EDAC Inc. 637-W15-621-012	0.76 Ám	30 Áin	3	UL94 V-0	DE E	1	High Density	Grounding Indents Shielded	Polybutylene Terephthalate (PBT)	Female Screwlock (4-40) Mating Side	Gold	IP67 - Dust Tight Waterproof	15	3 A	Solder	-25 °C	85 °C	Black	Nickel Plated Steel	Copper Alloy	Through Hole	D-Sub High Density	Male Pins Plug	Signal
EDAC Inc. 637-W15-221-012			3	UL94 V-0	DE E	1	High Density		Polybutylene Terephthalate (PBT) Glass Filled	Female Screwlock (4-40) Mating Side	Gold	IP67 - Dust Tight Waterproof	15	3 A	Solder	-25 °C	85 °C	Black	Nickel Plated Steel	Copper Alloy	Panel Mount Through Hole	D-Sub High Density	Male Pins Plug	Signal	Flash
EDAC Inc. 637-W15-622-012	0.76 Ám	30 Áin	3	UL94 V-0	DE E	1	High Density	Grounding Indents Shielded	Polybutylene Terephthalate (PBT)	Female Screwlock (4-40) Mating Side	Gold	IP67 - Dust Tight Waterproof	15	3 A		-25 °C	85 °C	Black	Nickel Plated Steel	Copper Alloy	Free Hanging (In-Line)	D-Sub High Density	Male Pins Plug	Signal

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tray	500	$ 11.36

General part information

15 Position D-Sub, High Density Plug, Male Pins Connector
