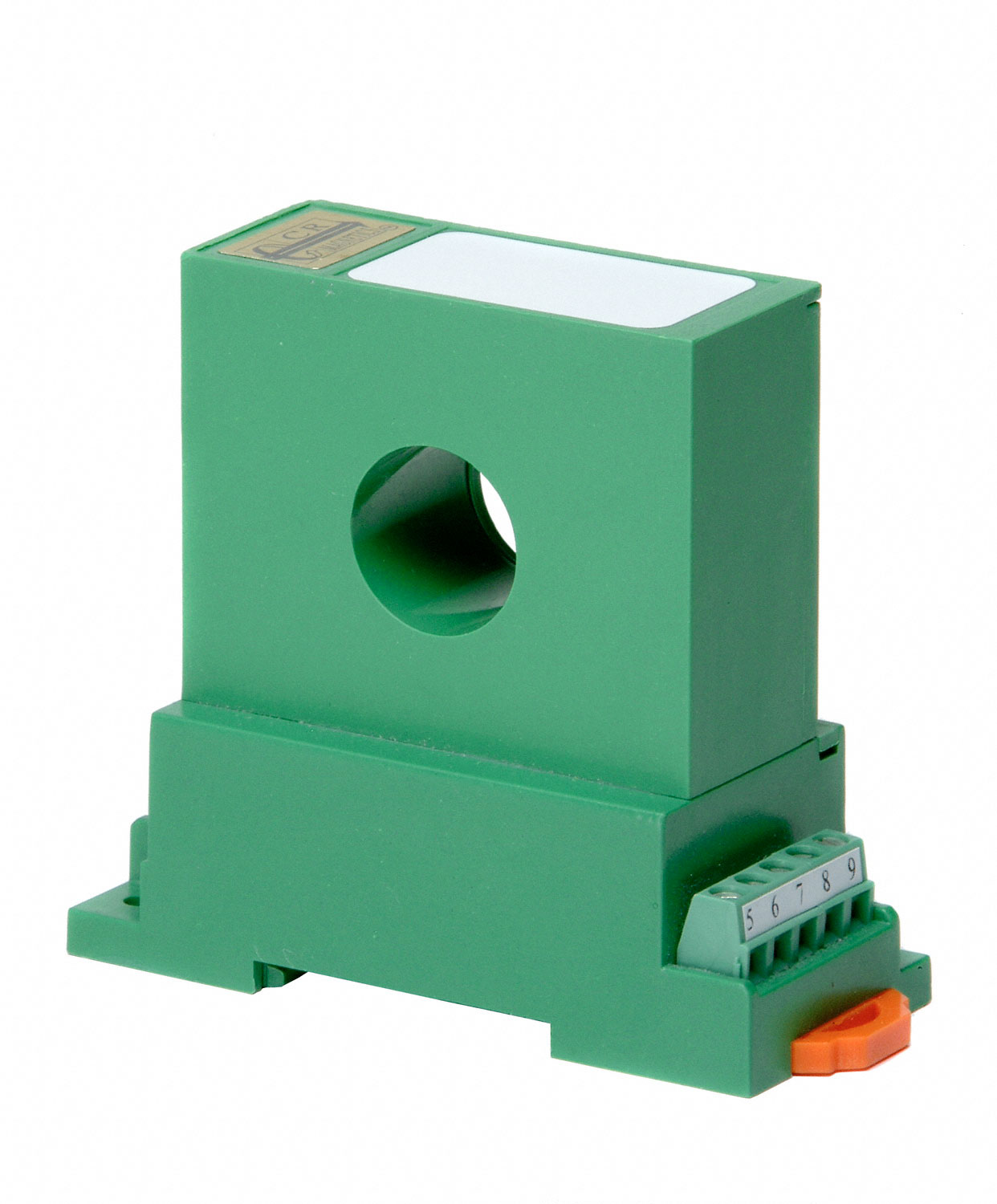

CR4110-25
ActiveCR Magnetics Inc.
SENSOR CURRENT XFMR 25A AC
CR4110-25
ActiveCR Magnetics Inc.
SENSOR CURRENT XFMR 25A AC
Description
General part information
CR4110-25
Current Sensor 25A 1 Channel Transformer w/Conditioning Bidirectional Module
Technical Specifications
Parameters and characteristics for this part
| Specification | CR4110-25 |
|---|---|
| Accuracy | 0.5 % RH |
| Current - Sensing | 25 A |
| Current - Supply (Max) | 25 mA |
| For Measuring | AC |
| Frequency (Max) | 5 kHz |
| Frequency (Min) | 20 Hz |
| Mounting Type | DIN Rail, Panel |
| Number of Channels | 1 |
| Operating Temperature (Max) | 60 °C |
| Operating Temperature (Min) | 0 °C |
| Output | Ratiometric |
| Output Voltage Range 1 (Max) | 5 V |
| Output Voltage Range 1 (Min) | 0 V |
| Package / Case | Module |
| Polarization | Bidirectional |
| Response Time | 250 ms |
| Sensor Type | Transformer w/Conditioning |
| Voltage - Supply | 24 VDC |
