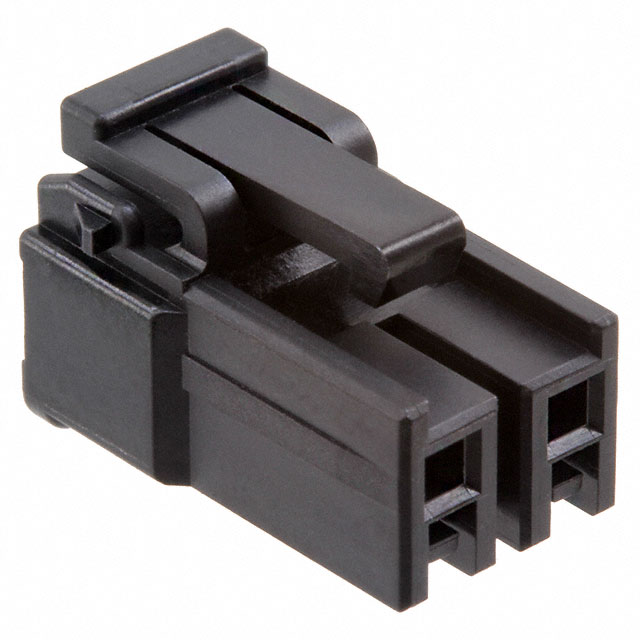

Specification	DF63-2S-3.96C

Color	Black
Connector Type	Socket
Contact Termination	Crimp
Contact Type	Female Socket
Fastening Type	Latch Lock
Insulation Material	Polybutylene Terephthalate (PBT), Glass Filled
Mounting Type	Free Hanging (In-Line)
Note	Contacts Not Included
Number of Positions	2
Number of Rows	1
Operating Temperature (Max)	105 °C
Operating Temperature (Min)	-55 °C
Pitch	0.156 in

DF63 Series

Part	Insulation Material	Termination	Material Flammability Rating	Number of Rows	Voltage Rating	Voltage Rating (Type)	Style	Shrouding	Number of Positions	Contact Finish Thickness - Mating	Connector Type	Contact Finish - Mating	Mounting Type	Fastening Type	Insulation Color	Current Rating	Current Rating	Contact Length - Post	Contact Shape	Contact Finish - Post	Contact Type	Insulation Height	Operating Temperature (Min)	Operating Temperature (Max)	Features	Contact Material	Pitch - Mating	Number of Positions Loaded	Contact Finish Thickness - Post	Note	Contact Termination	Color	Pitch
Hirose Electric Co Ltd DF63M-3P-3.96DS(01)	Glass Filled Polybutylene Terephthalate (PBT)	Solder	UL94 V-0	1	600 V	DC	Board Cable/Wire	Shrouded - 4 Wall	3	8 µin	Header	Gold	Right Angle Through Hole	Latch Holder	Black	0 A	Varies by Wire Gauge	0.138 in	Square	Tin	Male Pin	0.354 in	-55 °C	105 °C	Board Guide Glow Wire Compliant	Brass	0.156 in	All
Hirose Electric Co Ltd DF63-4P-3.96DSA	Glass Filled Polybutylene Terephthalate (PBT)	Solder	UL94 V-0	1	600 V	DC	Board Cable/Wire	Shrouded - 4 Wall	4		Header	Tin	Through Hole	Latch Holder	Black	0 A	Varies by Wire Gauge	0.15 in	Square	Tin	Male Pin	0.394 in	-55 °C	105 °C	Board Guide	Brass	0.156 in	All
Hirose Electric Co Ltd DF63M-2P-7.92DSA(01)	Glass Filled Polybutylene Terephthalate (PBT)	Solder	UL94 V-0	1	600 V	DC	Board Cable/Wire	Shrouded - 4 Wall	2	8 µin	Header	Gold	Through Hole	Latch Holder	Black	0 A	Varies by Wire Gauge	0.138 in	Square	Tin	Male Pin	0.394 in	-55 °C	105 °C	Board Guide Glow Wire Compliant	Brass	0.312 in	All	39.4 µin
Hirose Electric Co Ltd DF63M-1P-3.96DS	Glass Filled Polybutylene Terephthalate (PBT)	Solder	UL94 V-0	1	600 V	DC	Board Cable/Wire	Shrouded - 4 Wall	1	39.4 µin	Header	Tin	Right Angle Through Hole	Latch Holder	Black	0 A	Varies by Wire Gauge	0.138 in	Square	Tin	Male Pin	0.354 in	-55 °C	105 °C	Board Guide Glow Wire Compliant	Brass		All	39.4 µin
Hirose Electric Co Ltd DF63-2P-7.92DSA(01)	Glass Filled Polybutylene Terephthalate (PBT)	Solder	UL94 V-0	1	600 V	DC	Board Cable/Wire	Shrouded - 4 Wall	2	8 µin	Header	Gold	Through Hole	Latch Holder	Black	0 A	Varies by Wire Gauge	0.15 in	Square	Tin	Male Pin	0.394 in	-55 °C	105 °C	Board Guide	Brass	0.312 in	All	39.4 µin
Hirose Electric Co Ltd DF63MA-4EP-3.96C	Polybutylene Terephthalate (PBT)			1					4		Plug		Free Hanging (In-Line)	Latch Holder							Male Pin		-55 °C	105 °C						Contacts Not Included	Crimp	Black	0.156 in
Hirose Electric Co Ltd DF63-3P-7.92DSA(01)	Glass Filled Polybutylene Terephthalate (PBT)	Solder	UL94 V-0	1	600 V	DC	Board Cable/Wire	Shrouded - 4 Wall	3	8 µin	Header	Gold	Through Hole	Latch Holder	Black	0 A	Varies by Wire Gauge	0.15 in	Square	Tin	Male Pin	0.394 in	-55 °C	105 °C	Board Guide	Brass	0.312 in	All	39.4 µin
Hirose Electric Co Ltd DF63M-5P-3.96DS(01)	Glass Filled Polybutylene Terephthalate (PBT)	Solder	UL94 V-0	1	600 V	DC	Board Cable/Wire	Shrouded - 4 Wall	5	8 µin	Header	Gold	Right Angle Through Hole	Latch Holder	Black	0 A	Varies by Wire Gauge	0.138 in	Square	Tin	Male Pin	0.354 in	-55 °C	105 °C	Board Guide Glow Wire Compliant	Brass	0.156 in	All	39.4 µin
Hirose Electric Co Ltd DF63M-2P-3.96DSA(01)	Glass Filled Polybutylene Terephthalate (PBT)	Solder	UL94 V-0	1	600 V	DC	Board Cable/Wire	Shrouded - 4 Wall	2	8 µin	Header	Gold	Through Hole	Latch Holder	Black	0 A	Varies by Wire Gauge	0.138 in	Square	Tin	Male Pin	0.394 in	-55 °C	105 °C	Board Guide Glow Wire Compliant	Brass	0.156 in	All	39.4 µin
Hirose Electric Co Ltd DF63R-5P-3.96DSA(01)	Glass Filled Polybutylene Terephthalate (PBT)	Solder	UL94 V-0	1	600 V	DC	Board Cable/Wire	Shrouded - 4 Wall	5	8 µin	Header	Gold	Through Hole	Latch Holder	White	0 A	Varies by Wire Gauge	0.15 in	Square	Tin	Male Pin	0.394 in	-55 °C	105 °C	Board Guide	Brass	0.156 in	All	39.4 µin
