UW-09-628-W(F)
ActiveFloyd Bell Inc

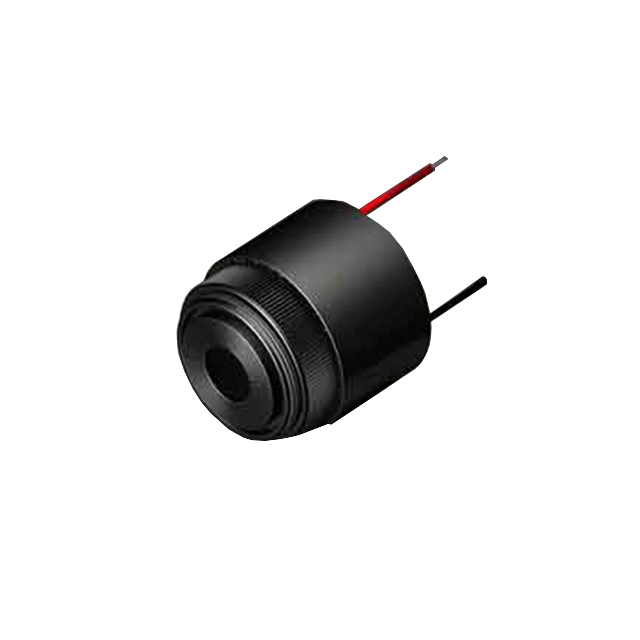

BUZZER PIEZO 35.81MM PNL MNT
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
UW-09-628-W(F)
ActiveFloyd Bell Inc
BUZZER PIEZO 35.81MM PNL MNT
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | UW-09-628-W(F) | UW-09 Series |
|---|---|---|
| Approval Agency | UR, UL | UR, UL |
| Current - Supply [Max] | 50 mA | 50 - 80 mA |
| Current - Supply [Min] | 20 mA | 20 - 35 mA |
| Driver Circuitry | Internally Driven, Indicator | Internally Driven, Indicator |
| Frequency | 2.1 kHz | 2.1 kHz |
| Height - Seated (Max) [Max] [z] | 35.05 mm | 35.05 mm |
| Height - Seated (Max) [Max] [z] | 1.38 in | 1.38 in |
| Ingress Protection | IP68 - Dust Tight, Waterproof | IP68 - Dust Tight, Waterproof |
| Input Type | DC | DC |
| Operating Mode | Warble Fast | Warble Fast, Slow, Warble, Single Tone, Fast, Warble, Slow |
| Port Location | Top | Top |
| Size / Dimension [diameter] | 1.41 in | 1.41 in |
| Size / Dimension [diameter] | 35.81 mm | 35.81 mm |
| Sound Pressure Level (SPL) | 109 dB | 109 dB |
| Technology | Piezo | Piezo |
| Termination | Wire Leads | Wire Leads, Quick Connect Tab - 0.250" (6.35mm), Screw Terminal, Quick Connect Tab - 0.250" (6.35mm) |
| Voltage Range [Max] | 28 VDC | 15 - 28 V |
| Voltage Range [Min] | 6 VDC | 5 - 6 VDC |
UW-09 Series
BUZZER PIEZO 35.81MM PNL MNT
| Part | Height - Seated (Max) [Max] [z] | Height - Seated (Max) [Max] [z] | Voltage Range [Min] | Voltage Range [Max] | Technology | Ingress Protection | Approval Agency | Sound Pressure Level (SPL) | Driver Circuitry | Termination | Operating Mode | Input Type | Size / Dimension [diameter] | Size / Dimension [diameter] | Frequency | Current - Supply [Max] | Current - Supply [Min] | Port Location |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Floyd Bell Inc UW-09-515-W(F) | 35.05 mm | 1.38 in | 5 VDC | 15 V | Piezo | IP68 - Dust Tight, Waterproof | UL, UR | 109 dB | Indicator, Internally Driven | Wire Leads | Warble Fast | DC | 1.41 in | 35.81 mm | 2.1 kHz | 80 mA | 35 mA | Top |
Floyd Bell Inc UW-09-628-Q(S)D | 35.05 mm | 1.38 in | 6 VDC | 28 VDC | Piezo | IP68 - Dust Tight, Waterproof | UL, UR | 109 dB | Indicator, Internally Driven | Quick Connect Tab - 0.250" (6.35mm) | Single Tone, Slow, Warble | DC | 1.41 in | 35.81 mm | 2.1 kHz | 50 mA | 20 mA | Top |
Floyd Bell Inc UW-09-515-Q(F)D | 35.05 mm | 1.38 in | 5 VDC | 15 V | Piezo | IP68 - Dust Tight, Waterproof | UL, UR | 109 dB | Indicator, Internally Driven | Quick Connect Tab - 0.250" (6.35mm) | Fast, Single Tone, Warble | DC | 1.41 in | 35.81 mm | 2.1 kHz | 80 mA | 35 mA | Top |
Floyd Bell Inc UW-09-515-S(S) | 35.05 mm | 1.38 in | 5 VDC | 15 V | Piezo | IP68 - Dust Tight, Waterproof | UL, UR | 109 dB | Indicator, Internally Driven | Screw Terminal, Quick Connect Tab - 0.250" (6.35mm) | Warble, Slow | DC | 1.41 in | 35.81 mm | 2.1 kHz | 80 mA | 35 mA | Top |
Floyd Bell Inc UW-09-628-W(F) | 35.05 mm | 1.38 in | 6 VDC | 28 VDC | Piezo | IP68 - Dust Tight, Waterproof | UL, UR | 109 dB | Indicator, Internally Driven | Wire Leads | Warble Fast | DC | 1.41 in | 35.81 mm | 2.1 kHz | 50 mA | 20 mA | Top |
Floyd Bell Inc UW-09-515-W(S) | 35.05 mm | 1.38 in | 5 VDC | 15 V | Piezo | IP68 - Dust Tight, Waterproof | UL, UR | 109 dB | Indicator, Internally Driven | Wire Leads | Warble, Slow | DC | 1.41 in | 35.81 mm | 2.1 kHz | 80 mA | 35 mA | Top |
Floyd Bell Inc UW-09-628-Q(S) | 35.05 mm | 1.38 in | 6 VDC | 28 VDC | Piezo | IP68 - Dust Tight, Waterproof | UL, UR | 109 dB | Indicator, Internally Driven | Quick Connect Tab - 0.250" (6.35mm) | Warble, Slow | DC | 1.41 in | 35.81 mm | 2.1 kHz | 50 mA | 20 mA | Top |
Floyd Bell Inc UW-09-515-Q(S) | 35.05 mm | 1.38 in | 5 VDC | 15 V | Piezo | IP68 - Dust Tight, Waterproof | UL, UR | 109 dB | Indicator, Internally Driven | Quick Connect Tab - 0.250" (6.35mm) | Warble, Slow | DC | 1.41 in | 35.81 mm | 2.1 kHz | 80 mA | 35 mA | Top |
Floyd Bell Inc UW-09-628-S(F)D | 35.05 mm | 1.38 in | 6 VDC | 28 VDC | Piezo | IP68 - Dust Tight, Waterproof | UL, UR | 109 dB | Indicator, Internally Driven | Screw Terminal, Quick Connect Tab - 0.250" (6.35mm) | Fast, Single Tone, Warble | DC | 1.41 in | 35.81 mm | 2.1 kHz | 50 mA | 20 mA | Top |
Floyd Bell Inc UW-09-515-S(F)D | 35.05 mm | 1.38 in | 5 VDC | 15 V | Piezo | IP68 - Dust Tight, Waterproof | UL, UR | 109 dB | Indicator, Internally Driven | Screw Terminal, Quick Connect Tab - 0.250" (6.35mm) | Fast, Single Tone, Warble | DC | 1.41 in | 35.81 mm | 2.1 kHz | 80 mA | 35 mA | Top |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Description
General part information
UW-09 Series
Buzzers Indicator, Internally Driven Piezo 20 ~ 50mA 2.1kHz 109dB @ 28V, 61cm Panel Mount Wire Leads
