Description
General part information

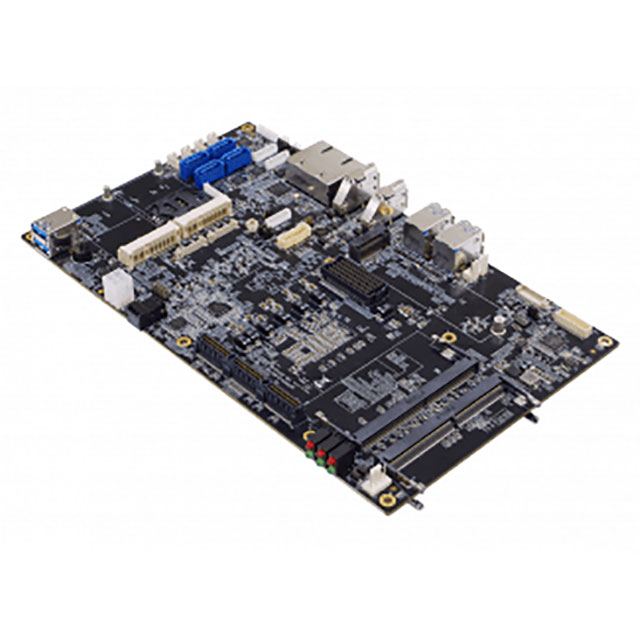

OXY5741A-01
Single Board Computer 2.7GHz ~ 4.4GHz 6 Core 128GB/0GB RAM Core™ i7-9850HE
Technical Specifications
Parameters and characteristics for this part
| Specification | OXY5741A-01 |
|---|---|
| Cooling Type | Fan |
| Core Processor | Core™ i7-9850HE |
| Ethernet Connector | RJ45 |
| Ethernet Speed Options | 100Mbps, 10Mbps, 1000Mbps |
| Expansion Site/Bus | Mini-PCIe, FPE, PCIe/104, M.2 |
| Form Factor | EBX |
| Number of Cores | 6 |
| Number of Storage Interfaces | 4 count |
| Operating Temperature (Max) | 60 °C |
| Operating Temperature (Min) | -20 °C |
| Power (Watts) | 45 W |
| RAM Capacity | 128 GB |
| RAM Installed | 0 GB |
| Serial Interface Count | 2 |
| Size / Dimension Length | 9.57 in |
| Size / Dimension Width | 5.75 in |
| Speed (Max) | 4.4 GHz |
| Speed (Min) | 2.7 GHz |
| Storage Interface | SATA 3.0 |
| Supported Serial Standards | RS-485, RS-422, RS-232 |
| USB | USB 3.0, USB 3.1, USB 2.0 |
| USB 2.0 Count | 4 count |
| USB 3.0 Count | 2 count |
| USB 3.1 Count | 4 count |
| Video Outputs | DP, LVDS |
| Watchdog Timer | Yes |
