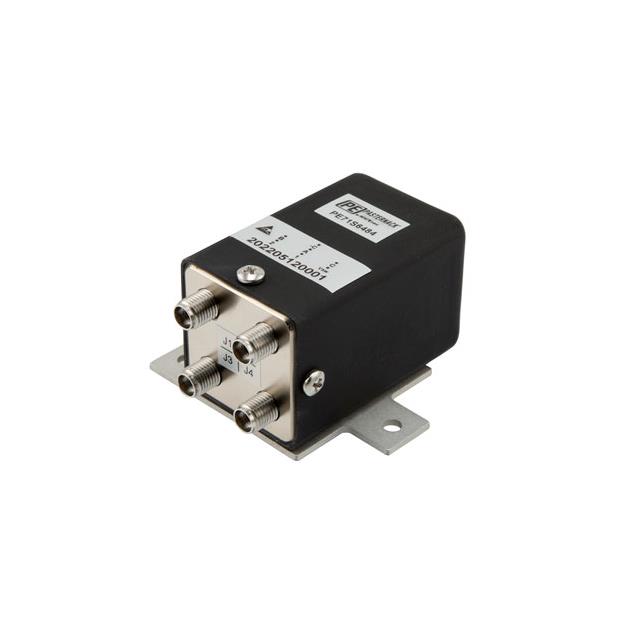

PE71S6484
ActivePasternack
TRANSFER ELECTROMECHANICAL RELAY
PE71S6484
ActivePasternack
TRANSFER ELECTROMECHANICAL RELAY
Description
General part information
PE71S6484
RF Switch IC General Purpose 50Ohm
Technical Specifications
Parameters and characteristics for this part
| Specification | PE71S6484 |
|---|---|
| Frequency Range (Max) | 40 GHz |
| Frequency Range (Min) | 0 Hz |
| Impedance | 50 Ohm |
| Insertion Loss | 0.4 dB |
| Isolation | 85 dB |
| Mounting Type | Chassis Mount |
| Operating Temperature (Max) | 65 °C |
| Operating Temperature (Min) | -25 °C |
| RF Type | General Purpose |
| Test Frequency | 40 GHz |
| Topology | Absorptive |
| Voltage - Supply | 12 VDC |
