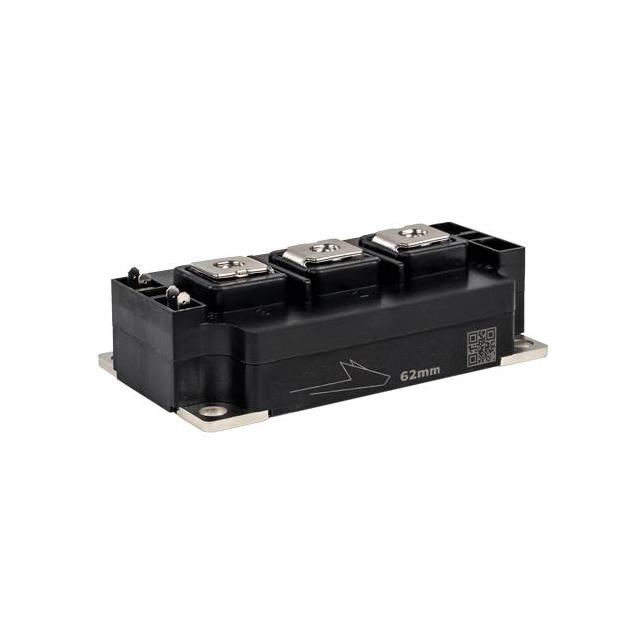

WAS175M12BM3

Active

Wolfspeed

SIC 2N-CH 1200V 228A

Search across all available documentation for this part.

Active

Wolfspeed

SIC 2N-CH 1200V 228A

Technical Specifications

Parameters and characteristics for this part

Specification	WAS175M12BM3

Configuration	2 N-Channel (Half Bridge)
Current - Continuous Drain (Id) @ 25°C	228 A
Drain to Source Voltage (Vdss)	1200 V
Drain to Source Voltage (Vdss)	1.2 kV
Input Capacitance (Ciss) (Max) @ Vds	12900 pF
Mounting Type	Chassis Mount
Operating Temperature [Max]	150 °C
Operating Temperature [Min]	-40 °C
Package / Case	Module
Rds On (Max) @ Id, Vgs	10.4 mOhm
Technology	Silicon Carbide (SiC)
Vgs(th) (Max) @ Id	3.6 V

SIC 2N-CH 1200V 228A

Part	Input Capacitance (Ciss) (Max) @ Vds	Technology	Vgs(th) (Max) @ Id	Configuration	Mounting Type	Rds On (Max) @ Id, Vgs	Operating Temperature [Max]	Operating Temperature [Min]	Package / Case	Current - Continuous Drain (Id) @ 25°C	Drain to Source Voltage (Vdss)	Drain to Source Voltage (Vdss)
Wolfspeed WAS175M12BM3	12900 pF	Silicon Carbide (SiC)	3.6 V	2 N-Channel (Half Bridge)	Chassis Mount	10.4 mOhm	150 °C	-40 °C	Module	228 A	1200 V	1.2 kV

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 527.45

General part information

Mosfet Array 1200V (1.2kV) 228A (Tc) Chassis Mount
