W8282-5SG-P-513

Active

Conxall/Switchcraft

MINI-CON-X INSTA-CLICK CONNECTOR

Search across all available documentation for this part.

Active

Conxall/Switchcraft

MINI-CON-X INSTA-CLICK CONNECTOR

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

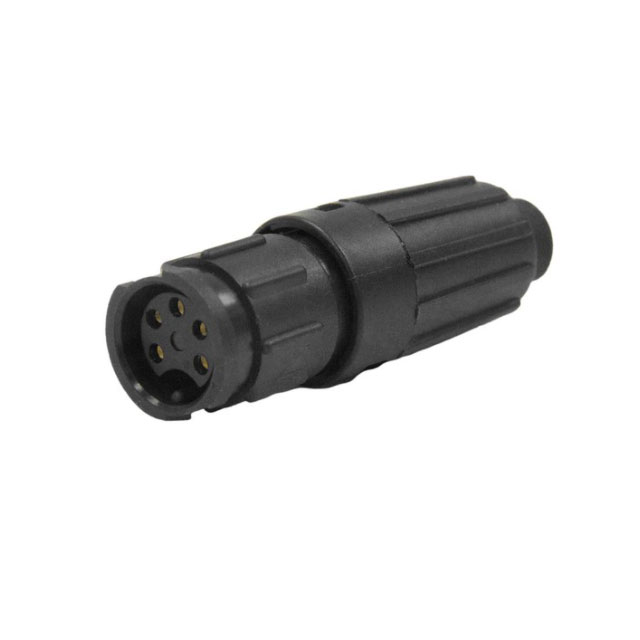

5 Position Circular Connector Plug, Female Sockets Solder Cup

Technical documentation and resources

Parameters and characteristics commom to parts in this series

Specification	W8282-5SG-P-513	W8282-5 Series

Applications	Automotive, Communication Systems, Instrumentation	Automotive, Communication Systems, Instrumentation
Backshell Material, Plating	Thermoplastic	Thermoplastic
Cable Opening	-	6.6 mm
Cable Opening	-	7.24 mm
Cable Opening	-	0.26 - 0.285 in
Cable Opening [custom]	0.13 in, 0.15 in	0.13 - 0.15 in
Cable Opening [custom]	3.81 mm, 3.3 mm	3.3 - 3.81 mm
Color	Black	Black
Connector Type	Female Sockets, Plug	Female Sockets, Plug
Contact Finish - Mating	Gold	Gold
Contact Material	Copper Alloy	Copper Alloy
Current Rating (Amps)	Varies by Wire Gauge	Varies by Wire Gauge
Fastening Type	Bayonet Lock	Bayonet Lock
Features	Coupling Nut, UV Resistant, Backshell	Coupling Nut, UV Resistant, Backshell
Ingress Protection	IP68, IP66, IP67	IP68, IP66, IP67
Insert Material	Thermoplastic	Thermoplastic
Mounting Type	Free Hanging (In-Line)	Free Hanging (In-Line)
Operating Temperature [Max]	85 °C	85 °C
Operating Temperature [Min]	-40 °C	-40 °C
Orientation	Keyed	Keyed
Primary Material	-	Plastic
Shell Material	Polybutylene Terephthalate (PBT)	Polybutylene Terephthalate (PBT)
Shielding	Unshielded	Unshielded
Voltage Rating	300 VAC	300 VAC

MINI-CON-X INSTA-CLICK CONNECTOR

Part	Features	Operating Temperature [Max]	Operating Temperature [Min]	Shielding	Fastening Type	Contact Finish - Mating	Cable Opening [diameter]	Cable Opening [diameter]	Cable Opening [diameter]	Connector Type	Ingress Protection	Color	Orientation	Backshell Material, Plating	Voltage Rating	Primary Material	Insert Material	Applications	Current Rating (Amps)	Mounting Type	Shell Material	Contact Material	Cable Opening [custom]	Cable Opening [custom]
Conxall/Switchcraft W8282-5SG-P-528	Backshell, Coupling Nut, UV Resistant	85 °C	-40 °C	Unshielded	Bayonet Lock	Gold	6.6 mm	7.24 mm	0.26 in, 0.285 in	Female Sockets, Plug	IP66, IP67, IP68	Black	Keyed	Thermoplastic	300 VAC	Plastic	Thermoplastic	Automotive, Communication Systems, Instrumentation	Varies by Wire Gauge	Free Hanging (In-Line)	Polybutylene Terephthalate (PBT)	Copper Alloy
Conxall/Switchcraft W8282-5SG-P-513	Backshell, Coupling Nut, UV Resistant	85 °C	-40 °C	Unshielded	Bayonet Lock	Gold				Female Sockets, Plug	IP66, IP67, IP68	Black	Keyed	Thermoplastic	300 VAC		Thermoplastic	Automotive, Communication Systems, Instrumentation	Varies by Wire Gauge	Free Hanging (In-Line)	Polybutylene Terephthalate (PBT)	Copper Alloy	0.13 in, 0.15 in	3.3 mm, 3.81 mm
