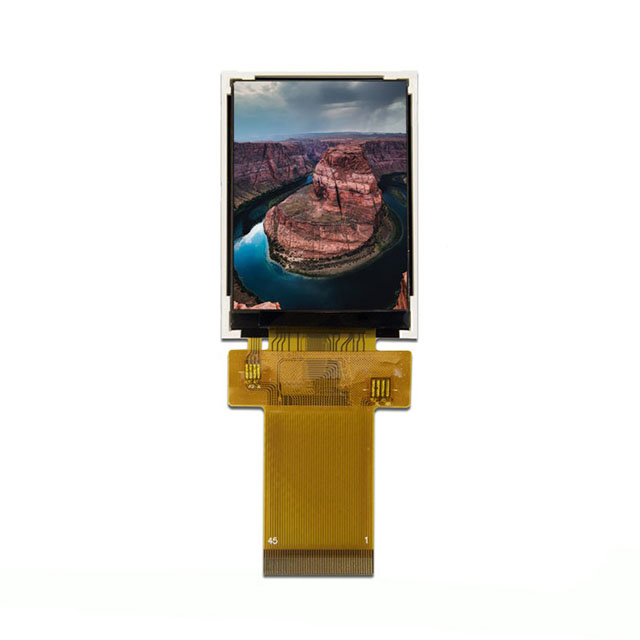

E22RA-FW280-N
ActiveFocus LCDs
2.2" TFT RGB, SPI
E22RA-FW280-N
ActiveFocus LCDs
2.2" TFT RGB, SPI
Description
General part information
E22RA-FW280-N
Non-Touch Graphic LCD Display Module Transmissive Red, Green, Blue (RGB) TFT - Color 18-Bit (RGB), SPI 2.2" (55.88mm) 240 x 320
Technical Specifications
Parameters and characteristics for this part
| Specification | E22RA-FW280-N |
|---|---|
| Backlight Color | White |
| Backlight Type | LED |
| Controller Type | ST7789 |
| Diagonal Screen Size | 2.2 in |
| Display Mode | Transmissive |
| Display Type | TFT - Color |
| Dot Pixels (Horizontal) | 240 pixels |
| Dot Pixels (Vertical) | 320 pixels |
| Graphics Color | Red, Green, Blue |
| Interface | SPI |
| Interface Data Width | 18 Bit |
| Touchscreen | Non-Touch |
| Viewing Area Height | 45.12 mm |
| Viewing Area Width | 33.84 mm |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Sign in to see pricing
Create a free account to access distributor pricing data.
CAD
3D models and CAD resources for this part
Documents
Technical documentation and resources
No documents available
