EWT100JB2K50
ActiveStackpole Electronics Inc
100W, 5%, BULK, 2.5K OHMS, CUSTO
EWT100JB2K50
ActiveStackpole Electronics Inc
100W, 5%, BULK, 2.5K OHMS, CUSTO
Description
General part information
EWT100JB2K50

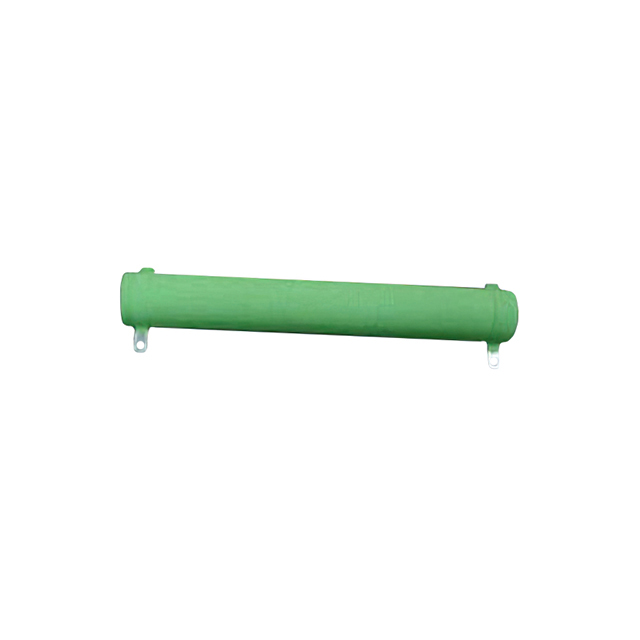

2.5 kOhms ±5% 100W Wirewound Chassis Mount Resistor
Technical Specifications
Parameters and characteristics for this part
| Specification | EWT100JB2K50 |
|---|---|
| Coating | Vitreous Enamel Coated |
| Composition | Wirewound |
| Features | Safety, Flame Proof |
| Housing Type | Vitreous Enamel Coated |
| Lead Style | Solder Lugs |
| Mounting Feature | Brackets (not included) |
| Operating Temperature (Max) | 350 °C |
| Operating Temperature (Min) | -55 °C |
| Package / Case | Tubular, Radial |
| Power (Watts) | 100 W |
| Resistance | 2.5 kOhm |
| Size / Dimension Diameter | 0.752 in |
| Size / Dimension Length | 6.496 in |
| Tolerance | 5 % |
