SSL-LX3054GD

Active

Lumex Opto/Components Inc.

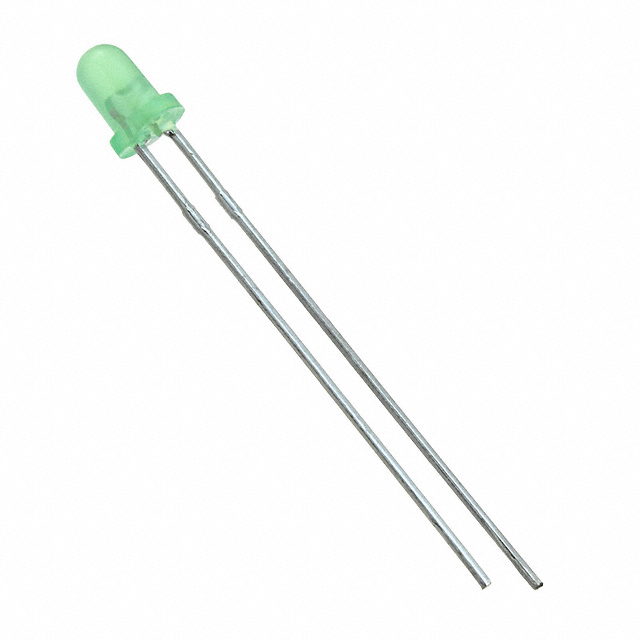

LED GREEN DIFFUSED T-1 T/H

Deep-Dive with AI

Search across all available documentation for this part.

SSL-LX3054GD

Active

Lumex Opto/Components Inc.

LED GREEN DIFFUSED T-1 T/H

Deep-Dive with AI

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 0.41
		10	$ 0.23
		100	$ 0.15
		500	$ 0.11
		1000	$ 0.10
		2000	$ 0.09
		5000	$ 0.08
		10000	$ 0.08
		25000	$ 0.07

Description

General part information

SSL-LX3054 Series

Green LED Indication - Discrete 2.2V Radial

Documents

Technical documentation and resources

No documents available

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	SSL-LX3054GD	SSL-LX3054 Series

	-	-
Color	Green	Yellow, Red, Green, Blue, White
Configuration	Standard	Standard, Independent, Common Cathode
Current - Test	20 mA	20 mA
Height (Max)	-	5.5 mm
Height (Max) [Max] [z]	5.25 mm	5.25 mm
Lens Color	Green	Yellow, Red, Colorless, Green, White, Blue
Lens Size	3 mm	3 mm
Lens Size	T-1	T-1
Lens Style	Round with Domed Top	Round with Domed Top
Lens Transparency	Diffused	Diffused, Clear
Millicandela Rating	12 mcd	2 - 7500 mcd
Millicandela Rating	-	20 mcd
Millicandela Rating	-	3 - 30 mcd
Mounting Type	Through Hole	Through Hole
Package / Case	Radial	Radial
Size / Dimension	-	3 mm
Supplier Device Package	T-1	T-1, T-1 (3mm)
Viewing Angle	60 °	20 - 60 °
Voltage - Forward (Vf) (Typ)	2.2 V	1.85 - 12 V
Wavelength - Peak	565 nm	430 - 700 nm

SSL-LX3054 Series

LED YELLOW DIFFUSED T-1 T/H

Part	Voltage - Forward (Vf) (Typ)	Height (Max) [Max] [z]	Package / Case	Lens Transparency	Mounting Type	Wavelength - Peak	Lens Color	Configuration	Lens Style	Supplier Device Package	Color	Viewing Angle	Lens Size	Lens Size	Millicandela Rating	Current - Test	Size / Dimension [diameter]	Millicandela Rating [custom]	Millicandela Rating [custom]	Height (Max) [Max]
Lumex Opto/Components Inc. SSL-LX3054LYD	2.1 V	5.25 mm	Radial	Diffused	Through Hole	585 nm	Yellow	Standard	Round with Domed Top	T-1	Yellow	60 °	3 mm	T-1	30 mcd	20 mA
Lumex Opto/Components Inc. SSL-LX3054ID	2 V	5.25 mm	Radial	Diffused	Through Hole	635 nm	Red	Standard	Round with Domed Top	T-1	Red	60 °	3 mm	T-1	40 mcd	20 mA
Lumex Opto/Components Inc. SSL-LX3054SUGC	2.2 V	5.25 mm	Radial	Clear	Through Hole		Colorless	Independent	Round with Domed Top	T-1 (3mm)	Green	30 °	3 mm	T-1	1000 mcd	20 mA	3 mm
Lumex Opto/Components Inc. SSL-LX3054YD	2.1 V	5.25 mm	Radial	Diffused	Through Hole	585 nm	Yellow	Standard	Round with Domed Top	T-1	Yellow	60 °	3 mm	T-1	30 mcd	20 mA
Lumex Opto/Components Inc. SSL-LX3054SBC	4.5 V	5.25 mm	Radial	Clear	Through Hole	430 nm	Colorless	Standard	Round with Domed Top	T-1	Blue	30 °	3 mm	T-1	100 mcd	20 mA
Lumex Opto/Components Inc. SSL-LX3054GD-12V	12 V	5.25 mm	Radial	Diffused	Through Hole	565 nm	Green	Standard	Round with Domed Top	T-1	Green	60 °	3 mm	T-1	6 mcd
Lumex Opto/Components Inc. SSL-LX3054YD-5V	5 V	5.25 mm	Radial	Diffused	Through Hole	585 nm	Yellow	Standard	Round with Domed Top	T-1	Yellow	60 °	3 mm	T-1	10 mcd
Lumex Opto/Components Inc. SSL-LX3054HGW	2 V, 2.2 V	5.25 mm	Radial	Diffused	Through Hole	565 nm, 700 nm	White	Common Cathode	Round with Domed Top	T-1	Green, Red	60 °	3 mm	T-1		20 mA, 20 mA		20 mcd	3 mcd
Lumex Opto/Components Inc. SSL-LX3054UWC/M	3.2 V		Radial	Clear	Through Hole		Colorless	Standard	Round with Domed Top	T-1 (3mm)	White	35 °	3 mm	T-1	7500 mcd	20 mA				5.5 mm
Lumex Opto/Components Inc. SSL-LX3054GD-TR	2.2 V	5.25 mm	Radial	Diffused	Through Hole	565 nm	Green	Standard	Round with Domed Top	T-1	Green	60 °	3 mm	T-1	20 mcd	20 mA
