L722ACF

Active

Switchcraft Inc.

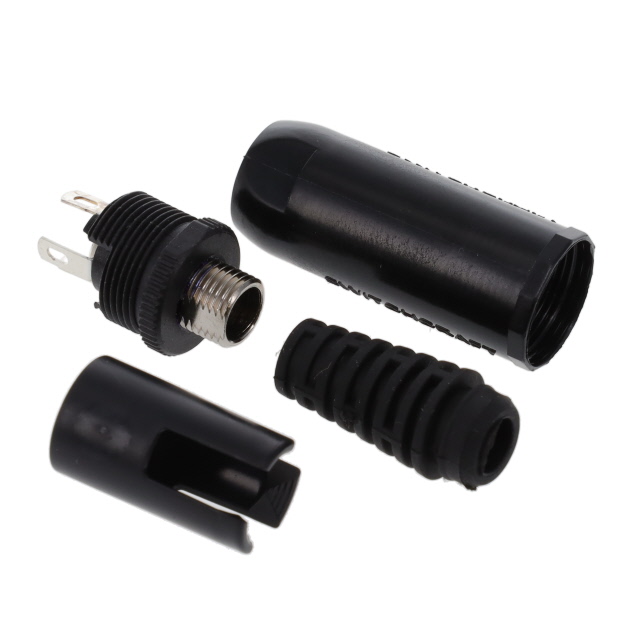

DC POWER JACK, IN-LINE, 2.0MM, L

Search across all available documentation for this part.

Active

Switchcraft Inc.

DC POWER JACK, IN-LINE, 2.0MM, L

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	L722ACF	L722A Series

Actual Diameter	0.079 "	0.079 "
Actual Diameter	2 mm	2 mm
Body Color	Silver, Black	Silver, Black, White
Body Material	Copper Alloy	Copper Alloy
Connector Type	Jack	Jack
Contact Material	Copper Alloy	Copper Alloy
Contact Material - Plating	Tin	Tin
Contact Material - Plating	-	Silver
Current Rating (Amps)	5 A	5 A
Features	Strain Relief	Thread Lock, Mounting Hardware, Strain Relief
Gender	Male	Male
Housing Material	Thermoplastic	Thermoplastic
Includes	-	1 Washer, 1 O-Ring, 1 Nut, 1 Connector, Connector, Washer, Nut
Industry Recognized Mating Diameter [diameter]	2 mm	2 - 5.5 mm
Industry Recognized Mating Diameter [diameter]	0.079 in	0.079 - 0.217 in
Ingress Protection	-	IP68
Insulation Color	Black	Black
Internal Switch(s)	-	Single Switch, Normally Closed
Mounting Feature	-	Bulkhead - Front Side Nut
Mounting Type	Free Hanging (In-Line)	Free Hanging (In-Line), Through Hole
Number of Positions/Contacts	3 Conductors, 2 Conductors	2 - 3 Conductors
Operating Temperature [Max]	105 ░C	105 ░C
Operating Temperature [Min]	-40 °C	-40 °C
Shielding	Unshielded	Unshielded
Termination	Solder Eyelet(s)	Solder Eyelet(s)
Thread Size	-	7/16"-32, 5/16"-32
Voltage - Rated	24 VDC	24 - 30 V

CONN PWR JACK 2X5.5MM SOLDER

Part	Termination	Housing Material	Features	Gender	Contact Material - Plating [custom]	Actual Diameter	Actual Diameter	Mounting Feature	Industry Recognized Mating Diameter [diameter]	Industry Recognized Mating Diameter [diameter]	Voltage - Rated	Body Material	Body Color	Ingress Protection	Contact Material	Thread Size	Shielding	Connector Type	Current Rating (Amps)	Internal Switch(s)	Includes	Number of Positions/Contacts	Mounting Type	Contact Material - Plating	Insulation Color	Operating Temperature [Min]	Operating Temperature [Max]
Switchcraft Inc. L722AS	Solder Eyelet(s)	Thermoplastic	Mounting Hardware, Thread Lock	Male	Silver	0.079 "	2 mm	Bulkhead - Front Side Nut	0.079 in, 0.217 "	2 mm, 5.5 mm	30 V	Copper Alloy	Black, Silver	IP68	Copper Alloy	7/16"-32	Unshielded	Jack	5 A	Normally Closed, Single Switch	1 Connector, 1 Nut, 1 O-Ring, 1 Washer	2 Conductors, 3 Conductors
Switchcraft Inc. L722ACF	Solder Eyelet(s)	Thermoplastic	Strain Relief	Male		0.079 "	2 mm		0.079 in	2 mm	24 VDC	Copper Alloy	Black, Silver		Copper Alloy		Unshielded	Jack	5 A			2 Conductors, 3 Conductors	Free Hanging (In-Line)	Tin	Black	-40 °C	105 ░C
Switchcraft Inc. L722AC	Solder Eyelet(s)	Thermoplastic		Male		0.079 "	2 mm		0.079 in	2 mm	24 VDC	Copper Alloy	Black, Silver		Copper Alloy		Unshielded	Jack	5 A			2 Conductors, 3 Conductors	Free Hanging (In-Line)	Tin	Black	-40 °C	105 ░C
Switchcraft Inc. L722AH	Solder Eyelet(s)	Thermoplastic		Male	Silver						24 VDC	Copper Alloy	Silver, White		Copper Alloy	5/16"-32	Unshielded	Jack		Single Switch	Connector, Nut, Washer	2 Conductors, 3 Conductors	Through Hole
