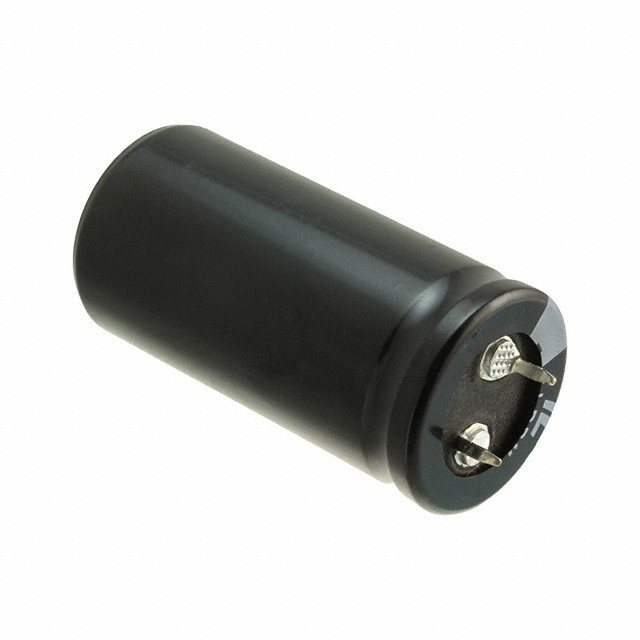

Specification	228LBB160M2EG

Applications	General Purpose
Capacitance	2200 ĄF
ESR (Equivalent Series Resistance)	113.04 mOhm
Height - Seated (Max)	1.85 in
Lead Spacing	0.394 in
Lifetime	3000 Hrs
Mounting Type	Through Hole
Operating Temperature (Max)	85 °C
Operating Temperature (Min)	-40 °C
Package / Case	Can - Snap-In, Radial
Polarization	Polar
Ripple Current	7.2912 A, 4.96 A
Size / Dimension Diameter	1.378 in
Tolerance	20 %
Voltage - Rated	160 V
