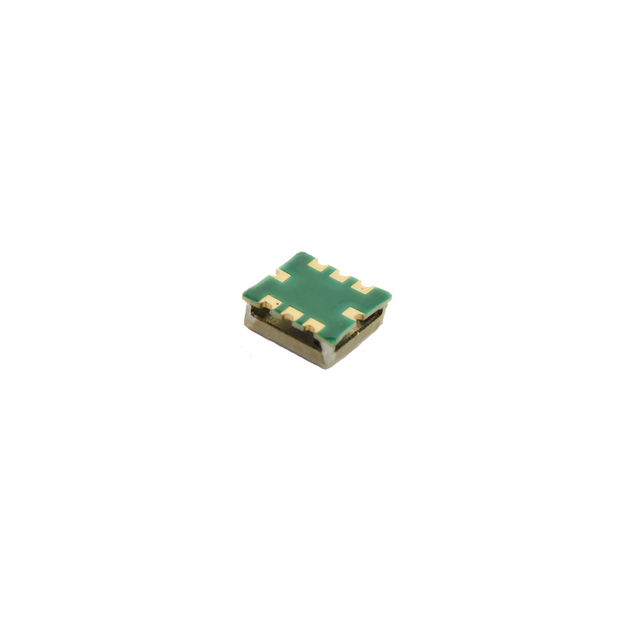

RQLA-2400-2500
ActiveRaltron Electronics
VCO 2400MHZ-2500MHZ SMD .5X.5"
RQLA-2400-2500
ActiveRaltron Electronics
VCO 2400MHZ-2500MHZ SMD .5X.5"
Description
General part information
RQLA-2400-2500
2.45GHz Center Frequency 0 V ~ 3 V Voltage Controlled Oscillator 3 ±3 dBm -20 2nd Harmonic Typ (dBc)
Technical Specifications
Parameters and characteristics for this part
| Specification | RQLA-2400-2500 |
|---|---|
| 2nd Harmonic (Typ) (dBc) | -20 dBc |
| Frequency - Center | 2450 MHz |
| Frequency Range (Max) | 2.5 GHz |
| Frequency Range (Min) | 2.4 GHz |
| Height | 0.087 in |
| Icc Max | 19 mA |
| Maximum Tuning Voltage (VDC) | 3 V |
| Minimum Tuning Voltage (VDC) | 0 V |
| Operating Temperature (Max) | 85 °C |
| Operating Temperature (Min) | -40 °C |
| Package / Case | 16-QFN, Variant |
| Phase Noise Typ (dBc/Hz) | -96 dBc/Hz |
| Power (dBm) (Nominal) | 3 dBm |
| Power (dBm) Tolerance | 3 dBm |
| Pushing (MHz/V) | 5 MHz/V |
| Size / Dimension Length | 0.3 in |
| Size / Dimension Width | 0.3 in |
| Voltage - Supply | 3 V |
