100023610
ActiveTelegartner Inc

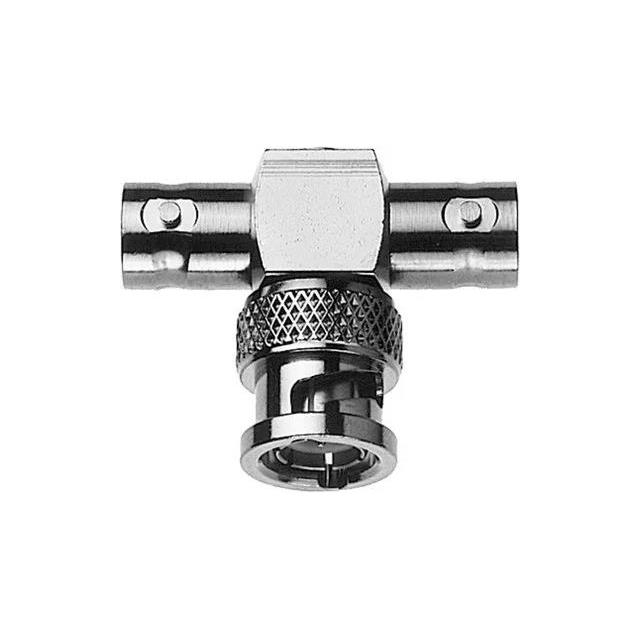

BNC T-ADAPT F-M-F Z75
100023610
ActiveTelegartner Inc
BNC T-ADAPT F-M-F Z75
Description
General part information
100023610
Adapter Coaxial Connector BNC Plug, Male Pin To BNC Jack, Female Socket (2) 75 Ohms
Technical Specifications
Parameters and characteristics for this part
| Specification | 100023610 |
|---|---|
| Adapter Series | BNC to BNC, Dual |
| Adapter Type | Plug to Jack |
| Body Finish | Nickel |
| Body Material | Brass |
| Center Contact Material | Beryllium Copper, Brass |
| Center Contact Plating | Gold |
| Center Gender | Male, Female |
| Conversion Type | Same Series |
| Convert From (Adapter End) | Male Pin, BNC Plug |
| Convert To (Adapter End) | Female Socket, BNC Jack |
| Convert To (Adapter End) Count | 2 count |
| Dielectric Material | Polytetrafluoroethylene (PTFE) |
| Fastening Type | Bayonet Lock |
| Impedance | 75 Ohm |
| Ingress Protection Description | Water Resistant, Dust Protected |
| Ingress Protection IP Rating | IP54 |
| Mounting Type | Free Hanging (In-Line) |
| Operating Temperature (Max) | 155 °C |
| Operating Temperature (Min) | -40 °C |
| Style | T-Shape |
