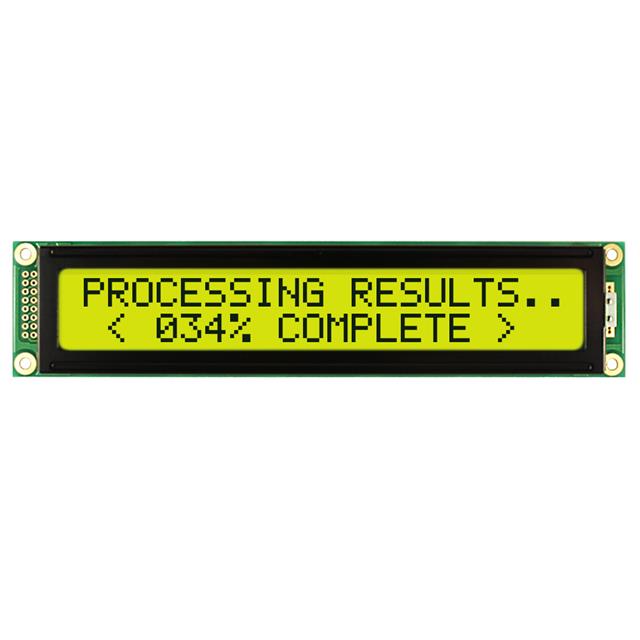

Specification	NHD-0220WH-LYYH-JT#

Backlight Color	Yellow, Green
Backlight Type	LED
Character Height	9.66 mm
Character Height (Dots)	8 Dots
Character Width	6 mm
Character Width (Dots)	5 Dots
Controller Type	KS0066U
Display Columns	20
Display Mode	Transflective
Display Rows	2
Display Type	STN - Super-Twisted Nematic
Dot Size Height	1.12 mm
Dot Size Width	1.12 mm
Interface	Parallel
Number of Characters	40 characters
Operating Temperature (Max)	70 °C
Operating Temperature (Min)	-20 °C
Outline Height	13.9 mm
Outline Length	180 mm
Outline Width	40 mm
Text Color	Blue
Viewing Area Length	149 mm
Viewing Area Width	23 mm
Voltage - Supply	5 VDC

NHD-0220 Series

Part	Character Height	Character Width	Character Width (Dots)	Character Height (Dots)	Dot Size Height	Dot Size Width	Display Mode	Display Type	Backlight Type	Backlight Color	Voltage - Supply	Interface	Controller Type	Outline Length	Outline Width	Outline Height	Background Color	Viewing Area Length	Viewing Area Width	Text Color	Number of Characters	Operating Temperature (Max)	Operating Temperature (Min)	Display Rows	Display Columns	Voltage - Supply (Minimum)	Voltage - Supply (Maximum)
Newhaven Display Intl NHD-0220WH-LYGH-JT#	9.66 mm	6 mm	5 Dots	8 Dots	1.12 mm	1.12 mm	Transflective	STN - Super-Twisted Nematic	LED	Green Yellow	5 VDC	Parallel	KS0066U	180 mm	40 mm	13.9 mm	Green	149 mm	23 mm	Blue	40 characters	70 °C	-20 °C	2	20
Newhaven Display Intl NHD-0220DZ-FL-YBW	5.55 mm	3.2 mm	5 Dots	8 Dots	0.65 mm	0.6 mm	Transflective	STN - Super-Twisted Nematic	LED	Green Yellow		Parallel	SPLC780D OR ST7066U	116 mm	37 mm	13.9 mm	Green	85 mm	18.6 mm	Blue	40 characters	70 °C	-20 °C	2	20	4.7 V	5.5 V
Newhaven Display Intl NHD-0220DZ-NSW-FBW	5.95 mm	3.2 mm	5 Dots	8 Dots	0.65 mm	0.6 mm	Transmissive	FSTN - Film Super-Twisted Nematic	LED	White		Parallel	SPLC780D OR ST7066U	116 mm	37 mm	13.5 mm	Blue	83 mm	18.6 mm	White	40 characters	70 °C	-20 °C	2	20	4.5 V	5.5 V
Newhaven Display Intl NHD-0220JZ-FSW-FBW	12.7 mm	5.9 mm	5 Dots	8 Dots	1.5 mm	1.1 mm	Transflective	FSTN - Film Super-Twisted Nematic	LED	White		Parallel	S6A0069	182 mm	60 mm	14 mm	White	147 mm	35.2 mm	Black	40 characters	70 °C	-20 °C	2	20	4.7 V	5.5 V
Newhaven Display Intl NHD-0220D3Z-NSW-BBW-V3	5.55 mm	3.2 mm	5 Dots	8 Dots	0.65 mm	0.6 mm	Transmissive	STN - Super-Twisted Nematic	LED	White		I2C RS-232 SPI	PIC16F697	116 mm	37 mm	13.5 mm	Blue	83 mm	18.6 mm	White	40 characters	70 °C	-20 °C	2	20	4.7 V	5.5 V
Newhaven Display Intl NHD-0220FZ-FSW-GBW-P-3V3	3.23 mm	1.85 mm	5 Dots	8 Dots	0.36 mm	0.33 mm	Transflective	STN - Super-Twisted Nematic	LED	White		Parallel		65 mm	20 mm	8 mm	White	46 mm	10.8 mm	Gray	40 characters	70 °C	-20 °C	2	20	3 V	3.3 V
Newhaven Display Intl NHD-0220DZ-FL-GBW	5.95 mm	3.2 mm	5 Dots	8 Dots	0.65 mm	0.6 mm	Transflective	STN - Super-Twisted Nematic	LED	Green Yellow		Parallel	SPLC780D OR ST7066U	116 mm	37 mm	13.5 mm	Green	83 mm	18.6 mm	Blue	40 characters	70 °C	-20 °C	2	20	4.7 V	5.5 V
Newhaven Display Intl NHD-0220DZ-FSW-FBW	5.95 mm	3.2 mm	5 Dots	8 Dots	0.65 mm	0.6 mm	Transflective	FSTN - Film Super-Twisted Nematic	LED	White		Parallel	SPLC780D OR ST7066U	116 mm	37 mm	13.5 mm	White	83 mm	18.6 mm	Black	40 characters	70 °C	-20 °C	2	20	4.7 V	5.5 V
Newhaven Display Intl NHD-0220WH-MTGH-JT#E	9.22 mm	4.84 mm	5 Dots	8 Dots	1.1 mm	0.92 mm	Transflective	STN - Super-Twisted Nematic	LED	White		Parallel	ST7066U	146 mm	43 mm	13.7 mm	White	123 mm	23 mm	Blue	40 characters	70 °C	-20 °C	2	20	4.5 V	5.5 V
Newhaven Display Intl NHD-0220AZ-FL-YBW	9.22 mm	4.84 mm	5 Dots	8 Dots	1.1 mm	0.92 mm	Transflective	STN - Super-Twisted Nematic	LED	Green Yellow		Parallel	SPLC780D OR ST7066U	146 mm	43 mm	14.2 mm	Green	123 mm	23 mm	Blue	40 characters	70 °C	-20 °C	2	20	4.7 V	5.5 V
