General part information

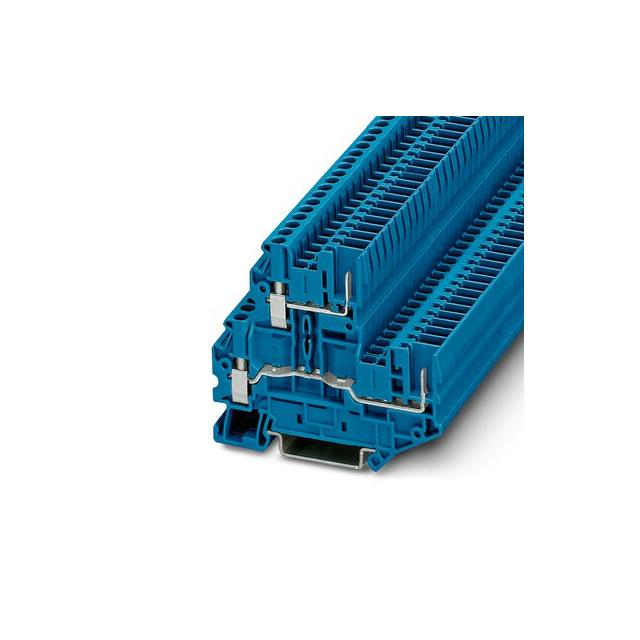

DIN Rail Terminal Blocks UTTB 2.5/2P BU
Technical documentation and resources
Parameters and characteristics for this part
| Specification | 3060364 |
|---|---|
| Current - IEC | 24 A |
| Current - UL | 20 A |
| Height (Max) [Max] [z] | 2.854 in |
| Height (Max) [Max] [z] | 72.5 mm |
| Housing Color | Blue |
| Length | 2.925 in |
| Length | 74.3 mm |
| Material - Insulation | Nylon, Polyamide (PA) |
| Material Flammability Rating | UL94 V-0 |
| Mounting Type | DIN Rail |
| Number of Levels | 2 |
| Number of Positions | 4 |
| Stripping Length | 9 mm |
| Terminal - Width [y] | 5.2 mm |
| Termination Style | Screw, Plug Receptacles |
| Type | Plug Connection |
| Voltage - IEC | 500 V |
| Voltage - UL | 300 V |
| Wire Gauge or Range - AWG [Max] | 26 AWG |
| Wire Gauge or Range - AWG [Min] | 16 AWG |
| Wire Gauge or Range - mm² [Max] | 4 mm² |
| Wire Gauge or Range - mm² [Min] | 0.14 mm² |
DIN Rail Terminal Blocks UTTB 2.5/2P BU
| Part | Wire Gauge or Range - AWG [Max] | Wire Gauge or Range - AWG [Min] | Number of Levels | Wire Gauge or Range - mm² [Min] | Wire Gauge or Range - mm² [Max] | Current - IEC | Length | Length | Voltage - UL | Material - Insulation | Mounting Type | Current - UL | Material Flammability Rating | Stripping Length | Terminal - Width [y] | Termination Style | Height (Max) [Max] [z] | Height (Max) [Max] [z] | Type | Housing Color | Voltage - IEC | Number of Positions |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Phoenix Contact 3060364 | 26 AWG | 16 AWG | 2 | 0.14 mm² | 4 mm² | 24 A | 2.925 in | 74.3 mm | 300 V | Nylon, Polyamide (PA) | DIN Rail | 20 A | UL94 V-0 | 9 mm | 5.2 mm | Plug Receptacles, Screw | 2.854 in | 72.5 mm | Plug Connection | Blue | 500 V | 4 |
