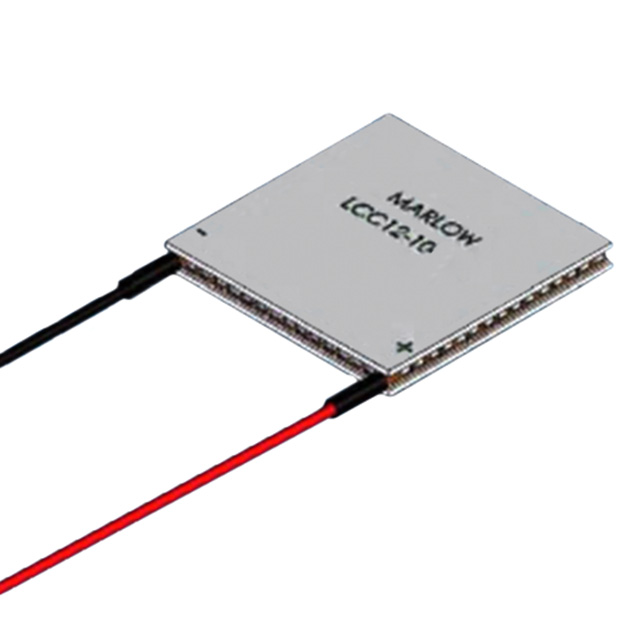

LCC12-10-01LS
ObsoleteMarlow Industries, Inc.
TEM THERMOCYCLER 40X40X3.84MM
LCC12-10-01LS
ObsoleteMarlow Industries, Inc.
TEM THERMOCYCLER 40X40X3.84MM
Description
General part information
LCC12-10-01LS
Peltier Module 85.0W @ 27°C 8.9 A 85°C
Technical Specifications
Parameters and characteristics for this part
| Specification | LCC12-10-01LS |
|---|---|
| Current - Max | 8.9 A |
| Delta Tmax | 62 °C |
| Features | Lapped, Sealed, Lead Wires |
| Height | 3.84 mm |
| Maximum Power Dissipation (Qmax) | 85 W |
| Number of Stages | 1 |
| Operating Temperature | 85 °C |
| Resistance | 1.32 Ohms |
| Size / Dimension Length | 40 mm |
| Size / Dimension Shape | Square |
| Size / Dimension Width | 40 mm |
| Type | TEC (Thermoelectric Cooler) |
| Voltage - Max | 14.7 V |
