PE9290
ActivePasternack
COAX ADAPT TNC TO TNC, DUAL
PE9290
ActivePasternack
COAX ADAPT TNC TO TNC, DUAL
Description
General part information
PE9290

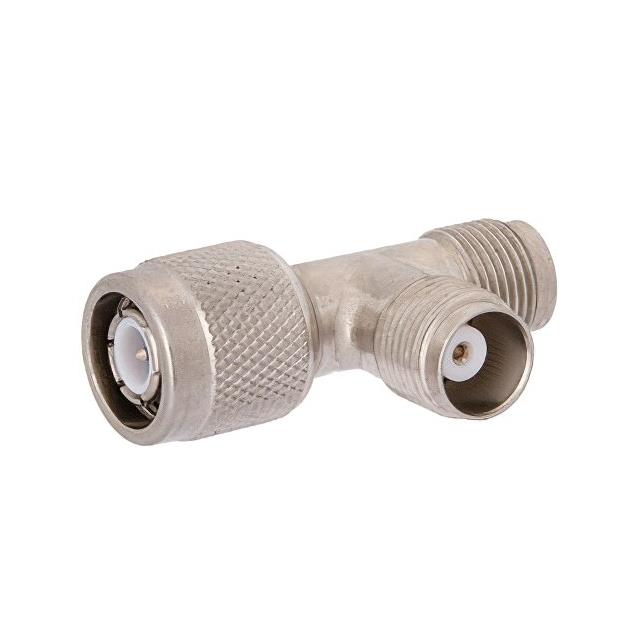

Adapter Coaxial Connector TNC Plug, Male Pin To TNC Jack, Female Socket (2) 50 Ohms
Technical Specifications
Parameters and characteristics for this part
| Specification | PE9290 |
|---|---|
| Adapter Series | Dual, TNC to TNC |
| Adapter Type | Plug to Jack |
| Body Finish | Nickel |
| Body Material | Brass |
| Center Contact Plating | Silver |
| Center Gender | Male, Female |
| Conversion Type | Same Series |
| Convert From (Adapter End) | TNC Plug, Male Pin |
| Convert To (Adapter End) | Female Socket, TNC Jack |
| Convert To (Adapter End) Count | 2 count |
| Dielectric Material | Polytetrafluoroethylene (PTFE) |
| Fastening Type | Threaded |
| Impedance | 50 Ohm |
| Mounting Type | Free Hanging (In-Line) |
| Operating Temperature (Max) | 165 °C |
| Operating Temperature (Min) | -65 °C |
| Style | T-Shape |
