Technical Specifications
Parameters and characteristics for this part
| Specification | 805-006-02ZL23-269CE |
|---|---|
| Applications | Aerospace, Aviation, Military |
| Backshell Material, Plating | Aluminum |
| Color | Silver |
| Connector Type | Receptacle, Male Pins |
| Contact Finish - Mating | Gold |
| Contact Finish Thickness - Mating | 50 µin |
| Contact Material | Copper Alloy |
| Fastening Type | Threaded |
| Ingress Protection | Environment Sealed |
| Insert Material | Fluorosilicone |
| Material Flammability Rating | Non Flammable |
| Mounting Feature | Flange |
| Mounting Type | Panel Mount, Through Hole |
| Number of Positions | 69 |
| Operating Temperature (Max) | 175 °C |
| Operating Temperature (Min) | -65 °C |
| Orientation | E |
| Position Types | Power |
| Primary Material | Metal |
| Shell Finish | Nickel |
| Shell Material | Stainless Steel |
| Shell Size - Insert (Maximum) | 269 |
| Shell Size - Insert (Minimum) | 23 |
| Shielding | Shielded |
| Termination | Solder |
| Voltage Rating | 1000 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | Updated |
|---|---|---|---|---|
| Digikey | Retail Package | 1 | $ 3215.14 | 30d+ |
| 5 | $ 3118.36 | |||
| 10 | $ 2850.61 | |||
| 25 | $ 2678.56 | |||
CAD
3D models and CAD resources for this part
Description
General part information

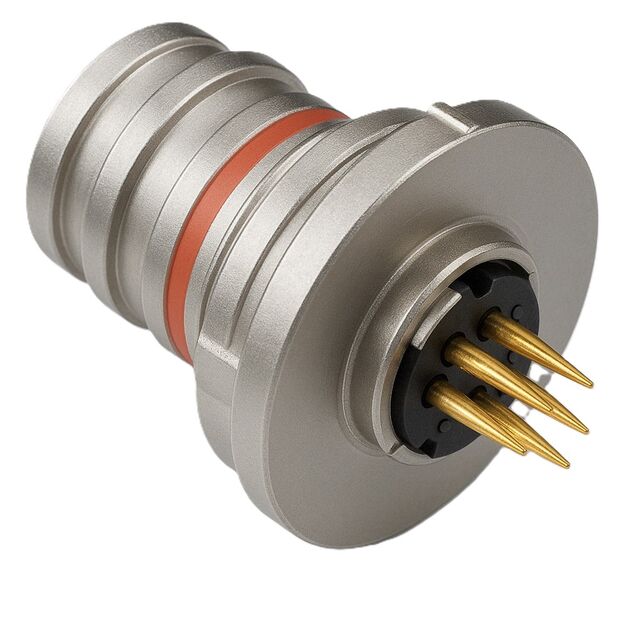

805-006-02ZL23-269CE
69 (Power) Position Circular Connector Receptacle, Male Pins Solder
