Description
General part information
1115766

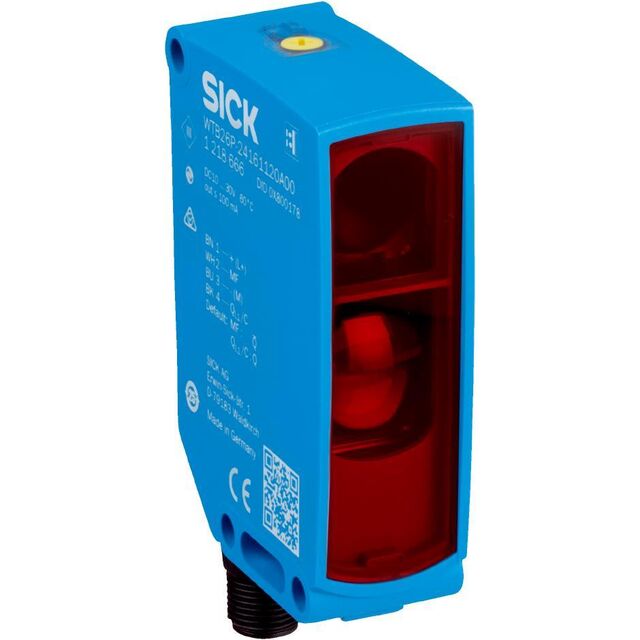

Background Suppression Optical Sensor 1.181" ~ 62.992" (30mm ~ 1.6m) PNP - Dark-ON/Light-ON
Technical Specifications
Parameters and characteristics for this part
| Specification | 1115766 |
|---|---|
| Adjustment Type | Teaching Method |
| Connection Method | Connector, M12 |
| Ingress Protection | IP66 |
| Light Source | Red |
| Light Source Wavelength (Red) | 635 nm |
| Operating Temperature (Max) | 60 °C |
| Operating Temperature (Min) | -40 °C |
| Output Configuration | Light-ON, PNP - Dark-ON |
| Response Time | 500 µs |
| Sensing Distance Maximum | 62.992 " |
| Sensing Distance Minimum | 1.181 " |
| Sensing Method | Background Suppression |
| Voltage - Supply (Maximum) | 30 VDC |
| Voltage - Supply (Minimum) | 10 VDC |
