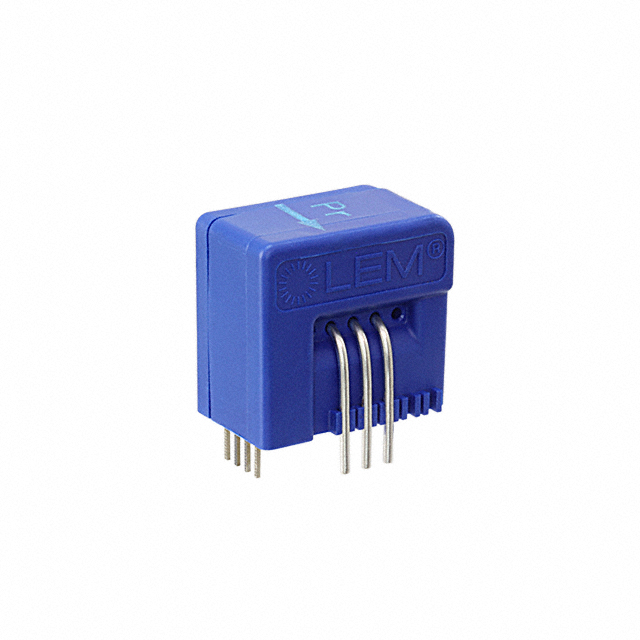

LESR 15-NP KIT
ObsoleteLEM USA Inc.
3 PIECE KIT SENSOR CURRENT HALL
LESR 15-NP KIT
ObsoleteLEM USA Inc.
3 PIECE KIT SENSOR CURRENT HALL
Description
General part information
LESR 15-NP KIT
Current Sensor 15A 1 Channel Hall Effect, Closed Loop Bidirectional Module
Technical Specifications
Parameters and characteristics for this part
| Specification | LESR 15-NP KIT |
|---|---|
| Accuracy | 1.25 % |
| Current - Sensing | 15 A |
| Current - Supply (Max) | 27.5 mA |
| For Measuring | AC, DC |
| Frequency | 300 kHz |
| Linearity Tolerance | 0.1 % |
| Mounting Type | Through Hole |
| Number of Channels | 1 |
| Operating Temperature (Max) | 105 °C |
| Operating Temperature (Min) | -40 °C |
| Output | Voltage, Ratiometric |
| Package / Case | Module |
| Polarization | Bidirectional |
| Response Time | 400 ns |
| Sensitivity | 41.67 mV/A |
| Sensor Type | Hall Effect, Closed Loop |
| Voltage - Supply (Maximum) | 5.25 V |
| Voltage - Supply (Minimum) | 4.75 V |
