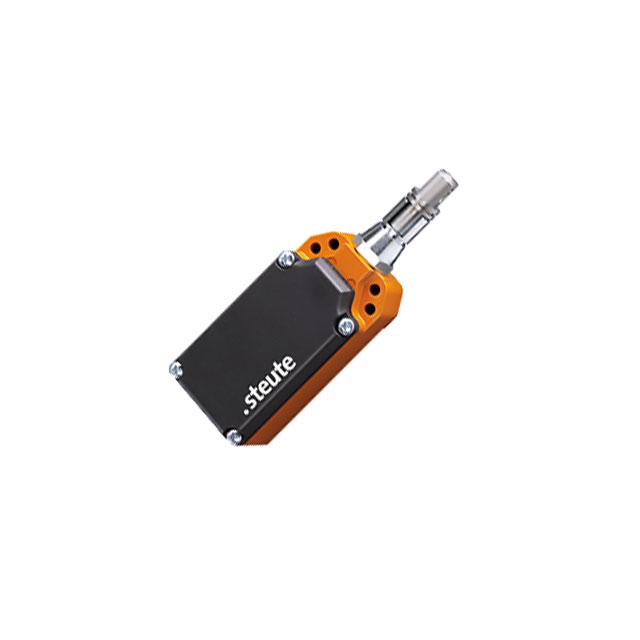

STE-1048069ZS71

Unknown

Steute

CABLE PULL SWITCH 1NC 6A 400V

Search across all available documentation for this part.

Unknown

Steute

CABLE PULL SWITCH 1NC 6A 400V

Technical Specifications

Parameters and characteristics for this part

Specification	STE-1048069ZS71

Circuit	DPST-NO/NC
Current Rating (Amps)	6 A
Ingress Protection	IP65 - Dust Tight, Water Resistant
Maximum Cable Length	5 m
Operating Force	5608 gf
Operating Temperature [Max]	70 °C
Operating Temperature [Min]	-25 °C
Switch Function	Off-Mom, On-Mom
Voltage Rating - AC	400 V

CABLE PULL SWITCH 1NC 6A 400V

Part	Current Rating (Amps)	Operating Force	Ingress Protection	Operating Temperature [Max]	Operating Temperature [Min]	Circuit	Voltage Rating - AC	Switch Function	Maximum Cable Length
Steute STE-1048069ZS71	6 A	5608 gf	IP65 - Dust Tight, Water Resistant	70 °C	-25 °C	DPST-NO/NC	400 V	Off-Mom, On-Mom	5 m

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 212.86

General part information

CABLE PULL SWITCH 1NC 6A 400V
