493R3C
ActiveMurata Power Solutions Inc.
FIXED IND 3.3UH 7.8A 14.9MOHM SM
Deep-Dive with AI
Search across all available documentation for this part.
493R3C
ActiveMurata Power Solutions Inc.
FIXED IND 3.3UH 7.8A 14.9MOHM SM
Deep-Dive with AI
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | 493R3C | 49 Series |
|---|---|---|
| Current Rating (Amps) | - | 0.5 - 950 A |
| DC Resistance (DCR) | - | 12 - 128 mOhm |
| DC Resistance (DCR) | - | 1.2 - 810 mOhm |
| Frequency - Self Resonant | - | 3 - 48 MHz |
| Height - Seated (Max) | - | 8 mm |
| Height - Seated (Max) | - | 0.315 in |
| Inductance | - | 1 - 680 µH |
| Inductance Frequency - Test | - | 10 kHz |
| Mounting Type | - | Surface Mount |
| null | - | |
| Operating Temperature | - | 85 °C |
| Operating Temperature | - | -40 °C |
| Package / Case | - | 4 Lead |
| Package / Case | - | Nonstandard |
| Q @ Freq | - | 1 - 800 |
| Shielding | - | Shielded |
| Size / Dimension | - | 0.472 - 0.48 in |
| Size / Dimension | - | 12 - 12.2 mm |
| Size / Dimension | - | 12 - 12.2 mm |
| Size / Dimension | - | 0.472 - 0.48 in |
| Tolerance | - | 20 - 30 % |
| Type | - | Wirewound |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
49 Series
FIXED IND 15UH 4.4A 27 MOHM SMD
| Part | Inductance | Tolerance | Package / Case | Package / Case | Q @ Freq | Type | Shielding | Size / Dimension [x] | Size / Dimension [x] | Size / Dimension [y] | Size / Dimension [y] | Current Rating (Amps) | Inductance Frequency - Test | DC Resistance (DCR) | Frequency - Self Resonant | Mounting Type | Operating Temperature [Max] | Operating Temperature [Min] | Height - Seated (Max) [Max] [z] | Height - Seated (Max) [Max] [z] | DC Resistance (DCR) [Max] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Murata Power Solutions Inc. 49150SC | 15 µH | 20 % | 4 Lead | Nonstandard | 1 MHz, 44 | Wirewound | Shielded | 0.48 in | 12.2 mm | 12.2 mm | 0.48 in | 4.4 A | 10 kHz | 27 mOhm | 16 MHz | Surface Mount | 85 °C | -40 °C | 8 mm | 0.315 in | |
Murata Power Solutions Inc. 49150C | 15 µH | 4 Lead | Nonstandard | Wirewound | Shielded | 0.472 in | 12 mm | 12 mm | 0.472 " | 3.7 A | 10 kHz | Surface Mount | 85 °C | -40 °C | 8 mm | 0.315 in | 53 mOhm | ||||
Murata Power Solutions Inc. 493R3SC | 3.3 µH | 30 % | 4 Lead | Nonstandard | 1 MHz, 42 | Wirewound | Shielded | 0.48 in | 12.2 mm | 12.2 mm | 0.48 in | 8.4 A | 10 kHz | 37 MHz | Surface Mount | 85 °C | -40 °C | 8 mm | 0.315 in | 10 mOhm | |
Murata Power Solutions Inc. 49221SC | 220 µH | 20 % | 4 Lead | Nonstandard | 36, 800 kHz | Wirewound | Shielded | 0.48 in | 12.2 mm | 12.2 mm | 0.48 in | 1.1 A | 10 kHz | 4 MHz | Surface Mount | 85 °C | -40 °C | 8 mm | 0.315 in | 380 mOhm | |
Murata Power Solutions Inc. 49220SC | 22 µH | 20 % | 4 Lead | Nonstandard | Wirewound | Shielded | 0.48 in | 12.2 mm | 12.2 mm | 0.48 in | 3.1 A | 10 kHz | 42 mOhm | 12 MHz | Surface Mount | 85 °C | -40 °C | 8 mm | 0.315 in | ||
Murata Power Solutions Inc. 49221C | 220 µH | 4 Lead | Nonstandard | Wirewound | Shielded | 0.472 in | 12 mm | 12 mm | 0.472 " | 950 mA | 10 kHz | Surface Mount | 85 °C | -40 °C | 8 mm | 0.315 in | 805 mOhm | ||||
Murata Power Solutions Inc. 492R2SC | 2.2 µH | 30 % | 4 Lead | Nonstandard | 1 MHz, 45 | Wirewound | Shielded | 0.48 in | 12.2 mm | 12.2 mm | 0.48 in | 9.8 A | 10 kHz | 48 MHz | Surface Mount | 85 °C | -40 °C | 8 mm | 0.315 in | 8 mOhm | |
Murata Power Solutions Inc. 493R3C | |||||||||||||||||||||
Murata Power Solutions Inc. 49101SC | |||||||||||||||||||||
Murata Power Solutions Inc. 49101C |
Description
General part information
49 Series

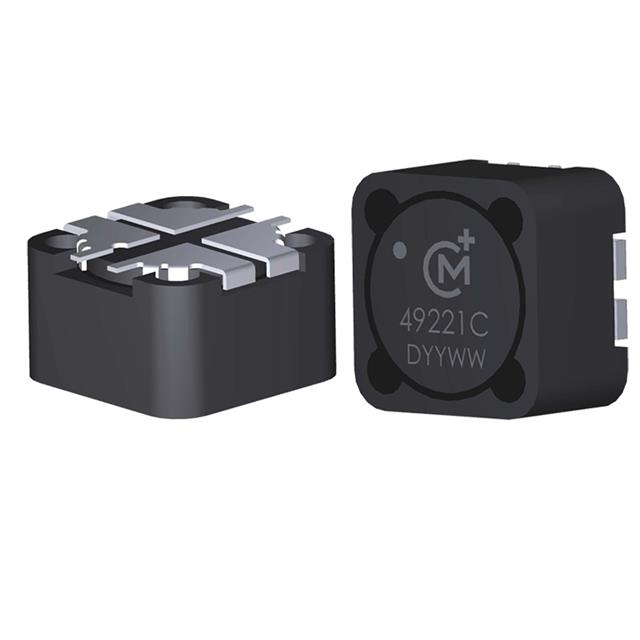

3.3 µH Shielded Wirewound Inductor 7.8 A 14.9mOhm Max Nonstandard, 4 Lead
