629-W15-240-012

Active

EDAC Inc.

629W (WATERPROOF) SERIES RIGHT A

Search across all available documentation for this part.

Active

EDAC Inc.

629W (WATERPROOF) SERIES RIGHT A

Technical Specifications

Parameters and characteristics for this part

Specification	629-W15-240-012

Backset Spacing	0.406 in
Backset Spacing	10.3 mm
Color	Black
Connector Style	D-Sub, Combo
Connector Type	Plug, Male Pins
Contact Finish	Gold
Contact Finish Thickness	Flash
Contact Material	Copper Alloy
Contact Type	Signal
Current Rating (Amps)	5 A
Dielectric Material	Polyamide (PA6T), Nylon 6T
Features	Grounding Indents, Shielded
Flange Feature	Female Screwlock (4-40), Mating Side
Ingress Protection	IP67 - Dust Tight, Waterproof
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole, Right Angle
Number of Positions	15
Number of Rows	2
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Shell Material, Finish	Nickel Plated, Steel
Shell Size, Connector Layout	2
Termination	Solder

Part	Backset Spacing	Backset Spacing	Termination	Color	Contact Finish	Connector Type	Features	Mounting Type	Dielectric Material	Number of Positions	Number of Rows	Ingress Protection	Contact Type	Contact Material	Shell Size, Connector Layout	Shell Material, Finish	Material Flammability Rating	Operating Temperature [Min]	Operating Temperature [Max]	Contact Finish Thickness	Contact Finish Thickness	Connector Style	Flange Feature	Current Rating (Amps)	Contact Finish Thickness
EDAC Inc. 629-W15-340-012	0.406 in	10.3 mm	Solder	Black	Gold	Male Pins Plug	Grounding Indents Shielded	Through Hole Right Angle	Polyamide (PA6T) Nylon 6T	15	2	IP67 - Dust Tight Waterproof	Signal	Copper Alloy	2	Nickel Plated Steel	UL94 V-0	-55 °C	125 °C	15 µin	0.38 µm	Combo D-Sub	Female Screwlock (4-40) Mating Side	5 A
EDAC Inc. 629-W15-240-012	0.406 in	10.3 mm	Solder	Black	Gold	Male Pins Plug	Grounding Indents Shielded	Through Hole Right Angle	Polyamide (PA6T) Nylon 6T	15	2	IP67 - Dust Tight Waterproof	Signal	Copper Alloy	2	Nickel Plated Steel	UL94 V-0	-55 °C	125 °C			Combo D-Sub	Female Screwlock (4-40) Mating Side	5 A	Flash
EDAC Inc. 629-W15-340-015	0.406 in	10.3 mm	Solder	Black	Gold	Male Pins Plug	Grounding Indents Mounting Brackets Shielded	Through Hole Right Angle	Polyamide (PA6T) Nylon 6T	15	2	IP67 - Dust Tight Waterproof	Signal	Copper Alloy	2	Nickel Plated Steel	UL94 V-0	-55 °C	125 °C	15 µin	0.38 µm	Combo D-Sub	Female Screwlock (4-40) Mating Side	5 A

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

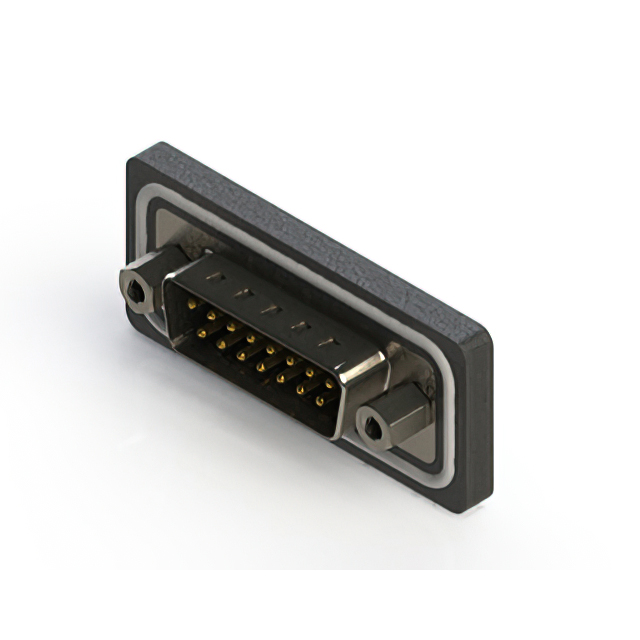

15 Position D-Sub, Combo Plug, Male Pins Connector
