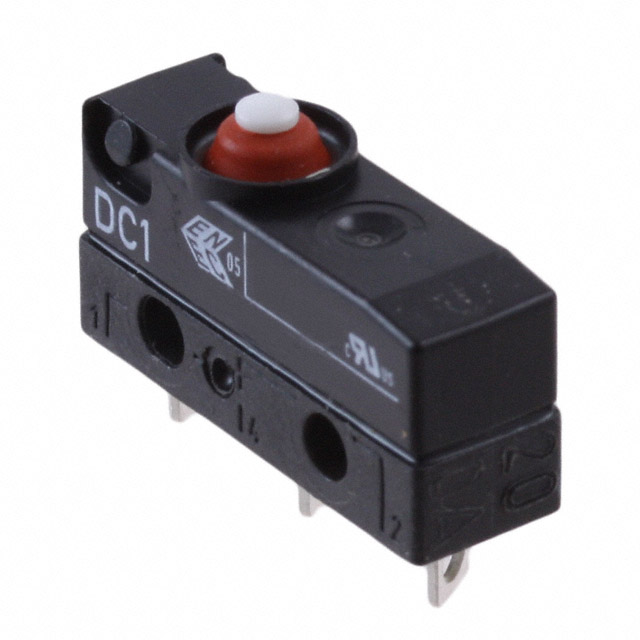

DC1C-A1AA
ActiveZF Electronics
SWITCH SNAP ACTION SPDT 5A 125V
Deep-Dive with AI
Search across all available documentation for this part.
DC1C-A1AA
ActiveZF Electronics
SWITCH SNAP ACTION SPDT 5A 125V
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | DC1C-A1AA |
|---|---|
| Actuator Type | Round (Pin Plunger) |
| Circuit | SPDT |
| Current Rating (Amps) | 1 A, 5 A |
| Differential Travel | 0.1 mm |
| Differential Travel | 0.004 in |
| Electrical Life | 6000 Cycles |
| Ingress Protection | IP67 - Dust Tight, Waterproof |
| Mechanical Life | 1000000 Cycles |
| Mounting Type | Chassis Mount |
| Operating Force | 204 gf |
| Operating Position | 8.4 mm |
| Operating Position | 0.33 in |
| Operating Temperature [Max] | 120 °C |
| Operating Temperature [Min] | -40 °C |
| Overtravel | 0.6 mm |
| Overtravel | 0.025 " |
| Pretravel | 0.04 in |
| Pretravel | 1 mm |
| Switch Function | On-Mom |
| Termination Style | Solder Lug |
| Voltage Rating - AC | 125 V |
| Voltage Rating - DC | 48 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 6.26 | |
| 10 | $ 5.01 | |||
| 25 | $ 4.76 | |||
| 50 | $ 4.63 | |||
| 100 | $ 4.01 | |||
| 250 | $ 3.76 | |||
| 500 | $ 3.57 | |||
| 1000 | $ 3.44 | |||
Description
General part information
DC1C-A1AA
Switch SPDT Chassis Mount
