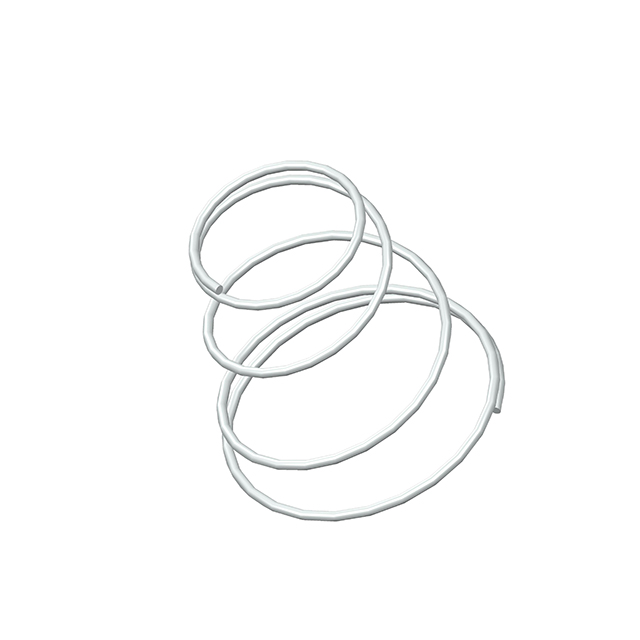

TA-2313CS
ActiveCentury Spring Corp
LO= 0.406, SO= 0.25, W= 0.014
TA-2313CS
ActiveCentury Spring Corp
LO= 0.406, SO= 0.25, W= 0.014
Description
General part information
TA-2313CS
LO= 0.406, SO= 0.25, W= 0.014
Technical Specifications
Parameters and characteristics for this part
| Specification | TA-2313CS |
|---|---|
| Diameter - Inside | 0.22 in |
| Diameter - Large Outside | 0.406 in |
| Diameter - Small Outside | 0.25 in |
| End Style | Closed |
| Finish | None |
| Free Length | 0.41 in |
| Material | Stainless Steel |
| Rate (lbs/in) | 0.7 lbs/in |
| Type | Tapered |
| Wire Diameter | 0.014 in |
