EPE.00.250.NTN

Active

LEMO

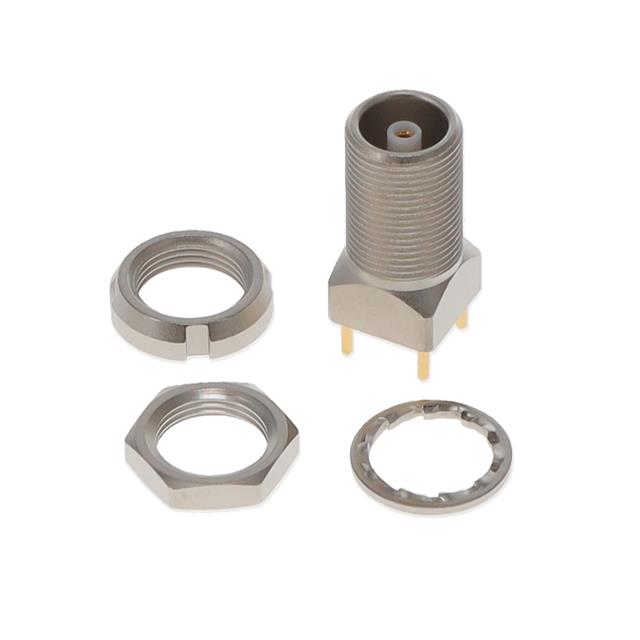

CONN NIMCAMAC RCPT STR 50OHM PCB

Search across all available documentation for this part.

Active

LEMO

CONN NIMCAMAC RCPT STR 50OHM PCB

Technical Specifications

Parameters and characteristics for this part

Specification	EPE.00.250.NTN

Body Finish	Nickel
Body Material	Brass
Center Contact Material	Bronze
Center Contact Plating	Gold
Connector Style	NIM-CAMAC CD/N 549
Connector Type	Receptacle, Female Socket
Contact Termination	Solder
Dielectric Material	Polytetrafluoroethylene (PTFE)
Fastening Type	Push-Pull
Housing Color	Silver
Impedance	50 Ohms
Includes	1 Lockwasher, 2 Nuts, 1 Connector
Ingress Protection	IP50
Mating Cycles	5000
Mounting Feature	Bulkhead - Front Side Nut
Mounting Type	Through Hole, Panel Mount
Number of Ports	1
Operating Temperature [Max]	260 ░C
Operating Temperature [Min]	-55 °C
Shield Termination	Solder
Voltage Rating	700 VDC

CONN NIMCAMAC RCPT STR 50OHM PCB

Part	Mating Cycles	Connector Style	Fastening Type	Shield Termination	Ingress Protection	Center Contact Material	Voltage Rating	Contact Termination	Center Contact Plating	Mounting Feature	Dielectric Material	Includes	Mounting Type	Number of Ports	Body Finish	Operating Temperature [Min]	Operating Temperature [Max]	Connector Type	Housing Color	Body Material	Impedance
LEMO EPE.00.250.NTN	5000	NIM-CAMAC CD/N 549	Push-Pull	Solder	IP50	Bronze	700 VDC	Solder	Gold	Bulkhead - Front Side Nut	Polytetrafluoroethylene (PTFE)	1 Connector, 1 Lockwasher, 2 Nuts	Panel Mount, Through Hole	1	Nickel	-55 °C	260 ░C	Female Socket, Receptacle	Silver	Brass	50 Ohms

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

NIM-CAMAC CD/N 549 Connector Receptacle, Female Socket 50 Ohms Panel Mount, Through Hole Solder
