TVRAM01DZ-9-98S
ActiveAmphenol Aerospace Operations
AMPHENOLS RAM-LOCK PUSH-PULL INT
TVRAM01DZ-9-98S
ActiveAmphenol Aerospace Operations
AMPHENOLS RAM-LOCK PUSH-PULL INT
Description
General part information
TVRAM01DZ-9-98S

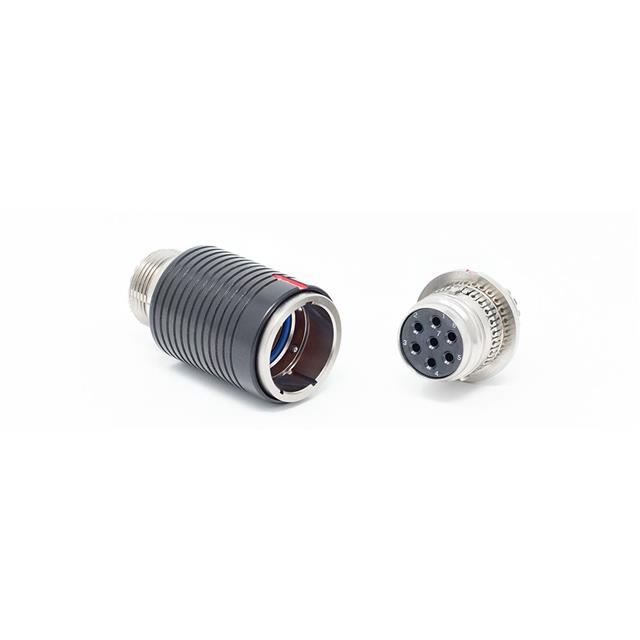

Position Circular Connector Plug, Female Sockets Crimp
Technical Specifications
Parameters and characteristics for this part
| Specification | TVRAM01DZ-9-98S |
|---|---|
| Color | Black |
| Connector Type | Female Sockets, Plug |
| Contact Finish - Mating | Gold |
| Contact Material | Copper Alloy |
| Fastening Type | Push-Pull |
| Insert Material | Polyphenylene Sulfide, PPS |
| Mounting Type | Free Hanging (In-Line) |
| Operating Temperature (Max) | 175 °C |
| Operating Temperature (Min) | -65 °C |
| Orientation | A |
| Primary Material | Metal |
| Shell Finish | Black Zinc Nickel |
| Shell Material | Aluminum Alloy |
| Shell Size - Insert (Maximum) | 10 S |
| Shell Size - Insert (Minimum) | 7 |
| Shielding | Shielded |
| Termination | Crimp |
