280-566/281-496
ActiveWAGO Corporation

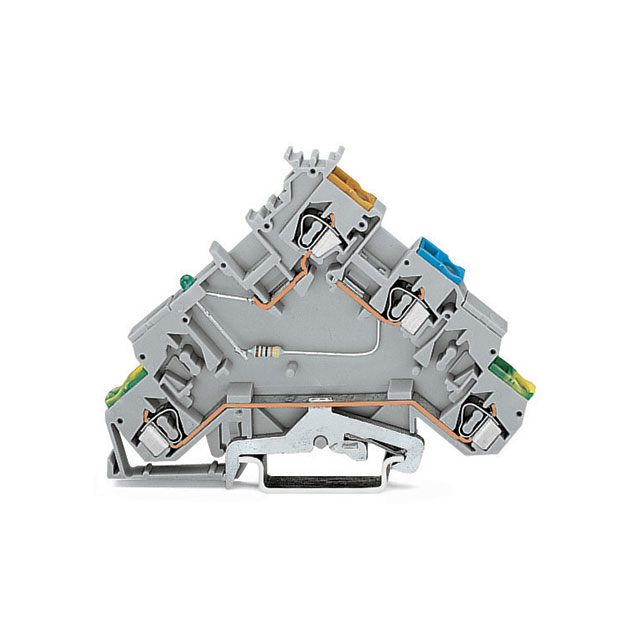

3-CONDUCTOR SENSOR SUPPLY TERMIN
280-566/281-496
ActiveWAGO Corporation
3-CONDUCTOR SENSOR SUPPLY TERMIN
Description
General part information
280-566/281-496
Terminal Block Connector 4 Position Isolated Gray 12-28 AWG
Technical Specifications
Parameters and characteristics for this part
| Specification | 280-566/281-496 |
|---|---|
| Color | Gray |
| Current - IEC | 20 A |
| Features | LED, Resistor |
| Material - Insulation | Polyamide, PA66, Nylon 6/6 |
| Material Flammability Rating | UL94 V-0 |
| Number of Levels | 2 |
| Number of Levels (Connection) | Connected |
| Number of Positions | 4 |
| Stripping Length (Max) | 9 mm |
| Stripping Length (Min) | 8 mm |
| Terminal Width | 5 mm |
| Termination Style | Push In, Spring |
| Type | Isolated |
| Wire Gauge or Range - AWG (Max) | 28 AWG |
| Wire Gauge or Range - AWG (Min) | 12 AWG |
| Wire Gauge or Range - mm² (Maximum) | 2.5 mm² |
| Wire Gauge or Range - mm² (Minimum) | 0.08 mm² |
