Description
General part information

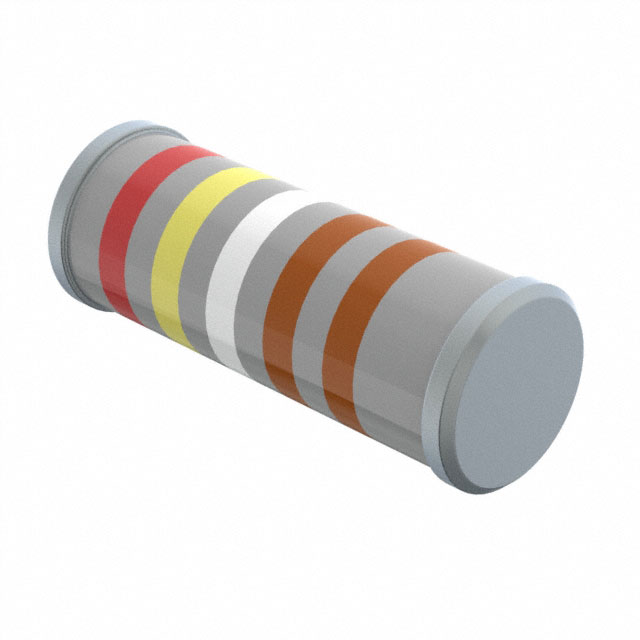

MMP200FRE360R
360 Ohms ±1% 2W Chip Resistor MELF, 0309 Metal Film
Technical Specifications
Parameters and characteristics for this part
| Specification | MMP200FRE360R |
|---|---|
| Composition | Metal Film |
| Number of Terminations | 2 |
| Operating Temperature (Max) | 155 °C |
| Operating Temperature (Min) | -55 °C |
| Package / Case | MELF, 0309 |
| Package Name | MELF |
| Power (Watts) | 2 w |
| Resistance | 360 Ohm |
| Size / Dimension Diameter | 0.126 in |
| Size / Dimension Length | 0.335 in |
| Temperature Coefficient | 50 ppm/°C |
| Tolerance | 1 % |
