CAB.M19.GLA.C92GZ
ActiveLEMO

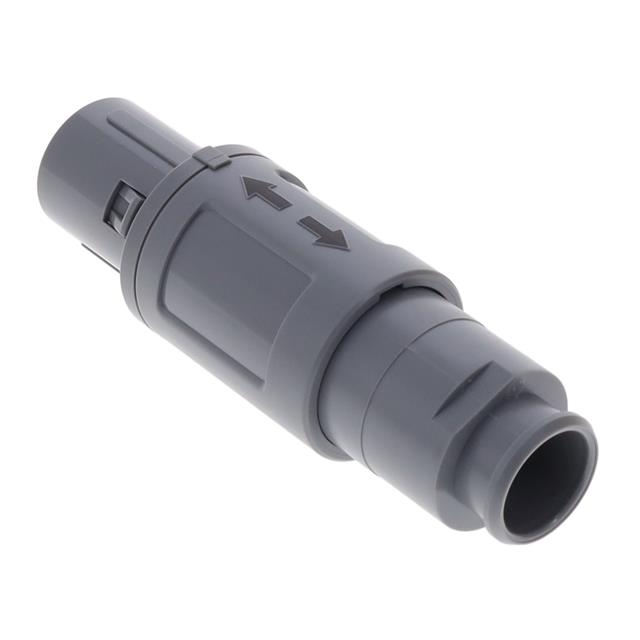

CONN PLUG MALE 19P GOLD SLDR CUP
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
CAB.M19.GLA.C92GZ
ActiveLEMO
CONN PLUG MALE 19P GOLD SLDR CUP
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | CAB.M19.GLA.C92GZ | CAB.M19 Series |
|---|---|---|
| Applications | Medical, Industrial, Automotive, Testing Equipment & Measurement | Medical, Industrial, Automotive, Testing Equipment & Measurement |
| Backshell Material, Plating | Polysulfone (PSU) | Polysulfone (PSU) |
| Cable Opening | - | 3.2 mm |
| Cable Opening | - | 0.126 in |
| Cable Opening | - | 5.2 mm |
| Cable Opening | - | 0.205 in |
| Cable Opening | - | 5.3 - 7.2 mm |
| Cable Opening | - | 0.209 - 0.283 in |
| Cable Opening [Max] [custom] | 0.362 in | 0.362 in |
| Cable Opening [Max] [custom] | 9.2 mm | 9.2 mm |
| Cable Opening [Min] [custom] | 0.287 in | 0.287 in |
| Cable Opening [Min] [custom] | 7.3 mm | 7.3 mm |
| Color | Gray | Gray |
| Connector Type | Plug, Male Pins | Plug, Male Pins |
| Contact Finish - Mating | Gold | Gold |
| Current Rating (Amps) | 5 A | 5 A |
| Fastening Type | Detent Lock, Push-Pull | Detent Lock, Push-Pull |
| Features | Backshell | Backshell |
| Ingress Protection | IP50 | IP50 |
| Insert Material | Polyetheretherketone (PEEK) | Polyetheretherketone (PEEK) |
| Mounting Type | Free Hanging (In-Line) | Free Hanging (In-Line) |
| Number of Positions | 19 | 19 |
| Operating Temperature [Max] | 150 °C | 150 °C |
| Operating Temperature [Min] | -50 °C | -50 °C |
| Orientation | B | B |
| Primary Material | Plastic | Plastic |
| Shell Material | Polysulfone (PSU) | Polysulfone (PSU) |
| Shell Size - Insert | M19 | M19 |
| Shielding | Unshielded | Unshielded |
CAB.M19 Series
CONN PLUG MALE 19P GOLD SLDR CUP
| Part | Cable Opening [Min] [diameter] | Cable Opening [Min] [diameter] | Cable Opening [Max] [diameter] | Cable Opening [Max] [diameter] | Color | Mounting Type | Primary Material | Shell Size - Insert | Fastening Type | Ingress Protection | Features | Current Rating (Amps) | Shielding | Connector Type | Number of Positions | Shell Material | Backshell Material, Plating | Operating Temperature [Max] | Operating Temperature [Min] | Applications | Insert Material | Orientation | Contact Finish - Mating | Cable Opening [custom] | Cable Opening [custom] | Cable Opening [Max] [custom] | Cable Opening [Min] [custom] | Cable Opening [Max] [custom] | Cable Opening [Min] [custom] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
LEMO CAB.M19.GLA.C52G | 3.2 mm | 0.126 in | 5.2 mm | 0.205 in | Gray | Free Hanging (In-Line) | Plastic | M19 | Detent Lock, Push-Pull | IP50 | Backshell | 5 A | Unshielded | Male Pins, Plug | 19 | Polysulfone (PSU) | Polysulfone (PSU) | 150 °C | -50 °C | Automotive, Industrial, Medical, Testing Equipment & Measurement | Polyetheretherketone (PEEK) | B | Gold | ||||||
Gray | Free Hanging (In-Line) | Plastic | M19 | Detent Lock, Push-Pull | IP50 | Backshell | 5 A | Unshielded | Male Pins, Plug | 19 | Polysulfone (PSU) | Polysulfone (PSU) | 150 °C | -50 °C | Automotive, Industrial, Medical, Testing Equipment & Measurement | Polyetheretherketone (PEEK) | B | Gold | 5.3 mm, 7.2 mm | 0.209 in, 0.283 in | |||||||||
Gray | Free Hanging (In-Line) | Plastic | M19 | Detent Lock, Push-Pull | IP50 | Backshell | 5 A | Unshielded | Male Pins, Plug | 19 | Polysulfone (PSU) | Polysulfone (PSU) | 150 °C | -50 °C | Automotive, Industrial, Medical, Testing Equipment & Measurement | Polyetheretherketone (PEEK) | B | Gold | 0.362 in | 0.287 in | 9.2 mm | 7.3 mm | |||||||
3.2 mm | 0.126 in | 5.2 mm | 0.205 in | Gray | Free Hanging (In-Line) | Plastic | M19 | Detent Lock, Push-Pull | IP50 | Backshell | 5 A | Unshielded | Male Pins, Plug | 19 | Polysulfone (PSU) | Polysulfone (PSU) | 150 °C | -50 °C | Automotive, Industrial, Medical, Testing Equipment & Measurement | Polyetheretherketone (PEEK) | B | Gold |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 48.88 | |
| 10 | $ 44.86 | |||
| 25 | $ 43.13 | |||
| 50 | $ 41.69 | |||
| 100 | $ 39.39 | |||
| 250 | $ 38.24 | |||
Description
General part information
CAB.M19 Series
19 Position Circular Connector Plug, Male Pins Solder Cup
