Description
General part information

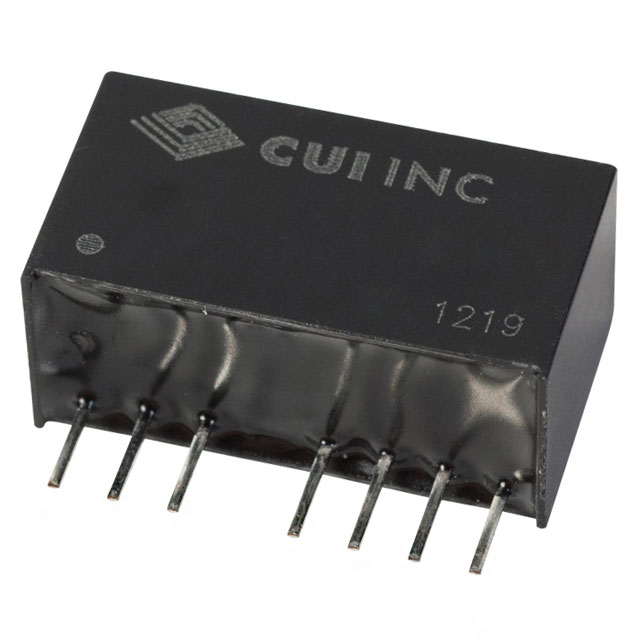

VWRBS2-D12-S3.3-SIP
Isolated Module DC DC Converter 1 Output 3.3V 500mA 9V - 18V Input
Technical Specifications
Parameters and characteristics for this part
| Specification | VWRBS2-D12-S3.3-SIP |
|---|---|
| Applications | ITE (Commercial) |
| Current - Output (Max) | 500 mA |
| Efficiency | 72 % |
| Features | SCP |
| Mounting Type | Through Hole |
| Number of Outputs | 1 |
| Operating Temperature (Max) | 85 °C |
| Operating Temperature (Min) | -40 °C |
| Package Leads | 7 Leads |
| Package Name | 8-SIP Module |
| Power (Watts) | 2 w |
| Size / Dimension Height | 0.47 in |
| Size / Dimension Length | 0.87 in |
| Size / Dimension Width | 0.37 in |
| Type | Isolated Module |
| Voltage - Input (Max) | 18 V |
| Voltage - Input (Min) | 9 V |
| Voltage - Isolation | 1500 Vrns |
| Voltage - Output 1 | 3.3 V |
