Q 30,0-JXS22-12-10/15-T1-FU-WA-LF

Active

Jauch Quartz

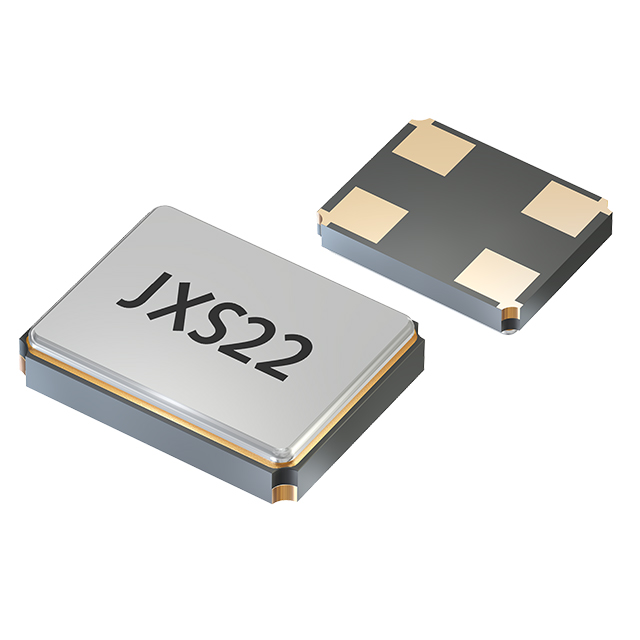

CRYSTAL 30.0000MHZ 12PF SMD

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

Q 30,0-JXS22-12-10/15-T1-FU-WA-LF

Active

Jauch Quartz

CRYSTAL 30.0000MHZ 12PF SMD

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tape & Reel (TR)	1000	$ 0.56

Description

General part information

JXS22 Series

30 MHz ±10ppm Crystal 12pF 50 Ohms 4-SMD, No Lead

Documents

Technical documentation and resources

Datasheet

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	Q 30,0-JXS22-12-10/15-T1-FU-WA-LF	JXS22 Series

ESR (Equivalent Series Resistance)	50 Ohms	40 - 80 Ohms
Frequency	30 MHz	16 - 52 MHz
Frequency Stability	15 ppm	10 - 15 ppm
Frequency Tolerance	10 ppm	10 ppm
Height - Seated (Max) [Max] [z]	0.6 mm	0.6 mm
Height - Seated (Max) [Max] [z]	0.024 in	0.024 in
Load Capacitance	12 pF	8 - 12 pF
Mounting Type	Surface Mount	Surface Mount
Operating Mode	Fundamental	Fundamental
Operating Temperature [Max]	85 °C	70 - 85 °C
Operating Temperature [Min]	-40 °C	-40 - -20 C
Package / Case	4-SMD, No Lead	4-SMD, No Lead
Size / Dimension [x]	0.098 "	0.098 "
Size / Dimension [x]	2.5 mm	2.5 mm
Size / Dimension [y]	2 mm	2 mm
Size / Dimension [y]	0.079 in	0.079 in
Type	MHz Crystal	MHz Crystal

JXS22 Series

CRYSTAL 48.0000MHZ 8PF SMD

...

Part	Package / Case	ESR (Equivalent Series Resistance)	Frequency Stability	Operating Temperature [Min]	Operating Temperature [Max]	Frequency	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Mounting Type	Load Capacitance	Operating Mode	Type	Frequency Tolerance	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]
Jauch Quartz Q 48,0-JXS22-8-10/10-FU-WA-LF	4-SMD, No Lead	40 Ohms	10 ppm	-20 C	70 °C	48 MHz	0.098 "	2 mm	2.5 mm	0.079 in	Surface Mount	8 pF	Fundamental	MHz Crystal	10 ppm	0.6 mm	0.024 in
Jauch Quartz Q 16,0-JXS22-12-10/10-WA-LF	4-SMD, No Lead	80 Ohm	10 ppm	-20 C	70 °C	16 MHz	0.098 "	2 mm	2.5 mm	0.079 in	Surface Mount	12 pF	Fundamental	MHz Crystal	10 ppm	0.6 mm	0.024 in
Jauch Quartz Q 19,20-JXS22-9-10/10-WA-LF	4-SMD, No Lead	70 Ohms	10 ppm	-20 C	70 °C	19.2 MHz	0.098 "	2 mm	2.5 mm	0.079 in	Surface Mount	9 pF	Fundamental	MHz Crystal	10 ppm	0.6 mm	0.024 in
Jauch Quartz Q 27,120-JXS22-10-10/10-FU-WA-LF	4-SMD, No Lead	50 Ohms	10 ppm	-20 C	70 °C	27.12 MHz	0.098 "	2 mm	2.5 mm	0.079 in	Surface Mount	10 pF	Fundamental	MHz Crystal	10 ppm	0.6 mm	0.024 in
Jauch Quartz Q 25,0-JXS22-10-10/15-T1-FU-WA-LF	4-SMD, No Lead	50 Ohms	15 ppm	-40 °C	85 °C	25 MHz	0.098 "	2 mm	2.5 mm	0.079 in	Surface Mount	10 pF	Fundamental	MHz Crystal	10 ppm	0.6 mm	0.024 in
Jauch Quartz Q 27,120-JXS22-9-10/15-T1-FU-WA-LF	4-SMD, No Lead	50 Ohms	15 ppm	-40 °C	85 °C	27.12 MHz	0.098 "	2 mm	2.5 mm	0.079 in	Surface Mount	9 pF	Fundamental	MHz Crystal	10 ppm	0.6 mm	0.024 in
Jauch Quartz Q 19,20-JXS22-9-10/15-T1-WA-LF	4-SMD, No Lead	70 Ohms	15 ppm	-40 °C	85 °C	19.2 MHz	0.098 "	2 mm	2.5 mm	0.079 in	Surface Mount	9 pF	Fundamental	MHz Crystal	10 ppm	0.6 mm	0.024 in
Jauch Quartz Q 20,0-JXS22-10-10/15-T1-FU-WA-LF	4-SMD, No Lead	60 Ohms	15 ppm	-40 °C	85 °C	20 MHz	0.098 "	2 mm	2.5 mm	0.079 in	Surface Mount	10 pF	Fundamental	MHz Crystal	10 ppm	0.6 mm	0.024 in
Jauch Quartz Q 52,0-JXS22-12-10/15-T1-FU-WA-LF	4-SMD, No Lead	40 Ohms	15 ppm	-40 °C	85 °C	52 MHz	0.098 "	2 mm	2.5 mm	0.079 in	Surface Mount	12 pF	Fundamental	MHz Crystal	10 ppm	0.6 mm	0.024 in
Jauch Quartz Q 16,0-JXS22-8-10/15-T1-WA-LF	4-SMD, No Lead	80 Ohm	15 ppm	-40 °C	85 °C	16 MHz	0.098 "	2 mm	2.5 mm	0.079 in	Surface Mount	8 pF	Fundamental	MHz Crystal	10 ppm	0.6 mm	0.024 in
